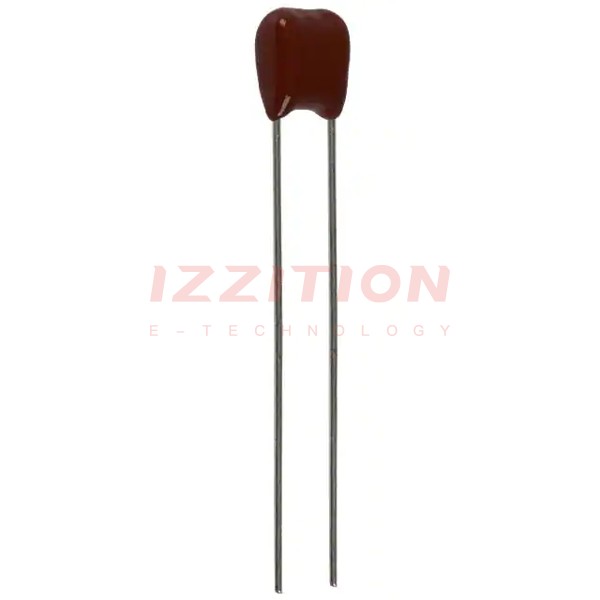

| Part Number | ECQ-E2223KB | ECQ-E2223KF | ECQ-E2224KB | ECQ-E2225KB | ECQ-E2273KB | ECQ-E2223KB3 | ECQ-E2223KFB | ECQ-E2223KS | ECQ-E2223KBB | ECQ-E2223JB |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete | Active |
| Capacitance | 0.022 µF | 0.022 µF | 0.22 µF | 2.2 µF | 0.027 µF | 0.022 µF | 0.022 µF | 0.022 µF | 0.022 µF | 0.022 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 125V | 150V | 125V | 125V | 125V | - | - | - | - | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.311" L x 0.169" W (7.90mm x 4.30mm) | 0.406" L x 0.173" W (10.30mm x 4.40mm) | 0.406" L x 0.213" W (10.30mm x 5.40mm) | 0.819" L x 0.331" W (20.80mm x 8.40mm) | 0.311" L x 0.169" W (7.90mm x 4.30mm) | 0.311" L x 0.169" W (7.90mm x 4.30mm) | 0.406" L x 0.173" W (10.30mm x 4.40mm) | 0.492" L x 0.177" W (12.50mm x 4.50mm) | 0.311" L x 0.169" W (7.90mm x 4.30mm) | 0.311" L x 0.169" W (7.90mm x 4.30mm) |
| Height - Seated (Max) | 0.323" (8.20mm) | 0.335" (8.50mm) | 0.437" (11.10mm) | 0.654" (16.60mm) | 0.323" (8.20mm) | 0.480" (12.20mm) | 0.492" (12.50mm) | 0.354" (9.00mm) | 0.480" (12.20mm) | 0.323" (8.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.689" (17.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - |
