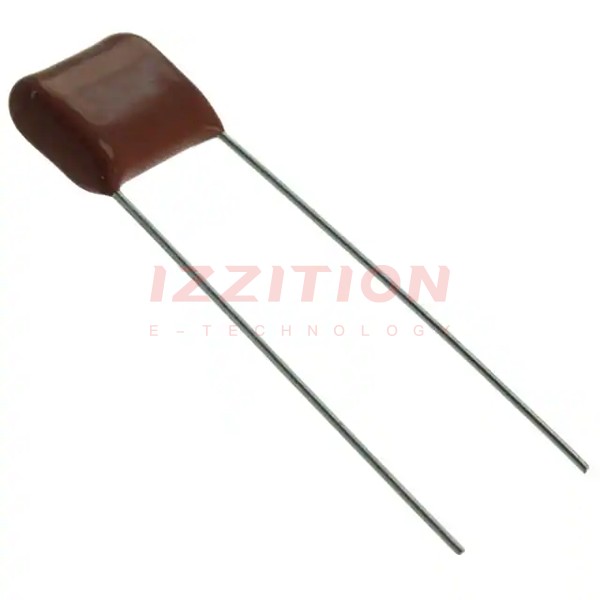

| Part Number | ECQ-E2184JF | ECQ-E2185JF | ECQ-E2184KF | ECQ-E2154JF | ECQ-E2183JF | ECQ-E2184JB |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.18 µF | 1.8 µF | 0.18 µF | 0.15 µF | 0.018 µF | 0.18 µF |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 150V | 150V | 150V | 150V | 150V | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.472" L x 0.197" W (12.00mm x 5.00mm) | 1.024" L x 0.295" W (26.00mm x 7.50mm) | 0.472" L x 0.197" W (12.00mm x 5.00mm) | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.406" L x 0.173" W (10.30mm x 4.40mm) | 0.406" L x 0.197" W (10.30mm x 5.00mm) |
| Height - Seated (Max) | 0.445" (11.30mm) | 0.650" (16.50mm) | 0.445" (11.30mm) | 0.465" (11.80mm) | 0.335" (8.50mm) | 0.421" (10.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.886" (22.50mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
