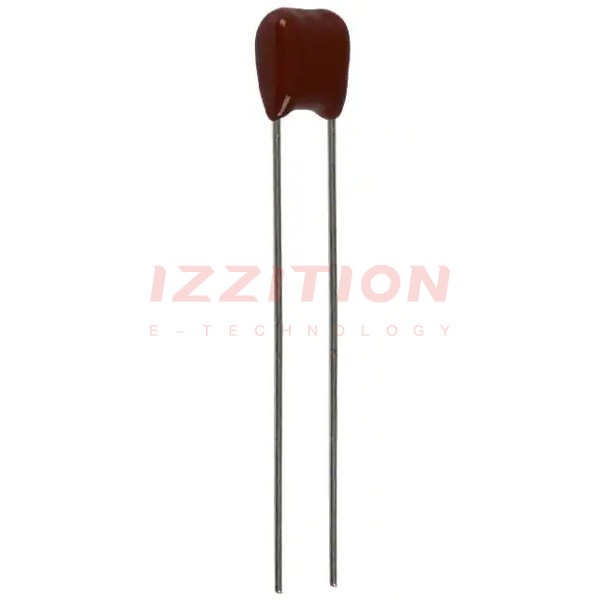

| Part Number | ECQ-E2183KB | ECQ-E2183KF | ECQ-E2184KB | ECQ-E2185KB | ECQ-E2183KFB | ECQ-E2183KBB | ECQ-E2183KB3 | ECQ-E2183KS | ECQ-E2153KB | ECQ-E2183JB |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Capacitance | 0.018 µF | 0.018 µF | 0.18 µF | 1.8 µF | 0.018 µF | 0.018 µF | 0.018 µF | 0.018 µF | 0.015 µF | 0.018 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 125V | 150V | 125V | 125V | - | - | - | - | 125V | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.311" L x 0.169" W (7.90mm x 4.30mm) | 0.406" L x 0.173" W (10.30mm x 4.40mm) | 0.406" L x 0.197" W (10.30mm x 5.00mm) | 0.819" L x 0.299" W (20.80mm x 7.60mm) | 0.406" L x 0.173" W (10.30mm x 4.40mm) | 0.311" L x 0.169" W (7.90mm x 4.30mm) | 0.311" L x 0.169" W (7.90mm x 4.30mm) | 0.492" L x 0.177" W (12.50mm x 4.50mm) | 0.311" L x 0.165" W (7.90mm x 4.20mm) | 0.311" L x 0.169" W (7.90mm x 4.30mm) |
| Height - Seated (Max) | 0.323" (8.20mm) | 0.335" (8.50mm) | 0.421" (10.70mm) | 0.614" (15.60mm) | 0.492" (12.50mm) | 0.480" (12.20mm) | 0.480" (12.20mm) | 0.354" (9.00mm) | 0.319" (8.10mm) | 0.323" (8.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.689" (17.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - |
