Please send RFQ , we will respond immediately.

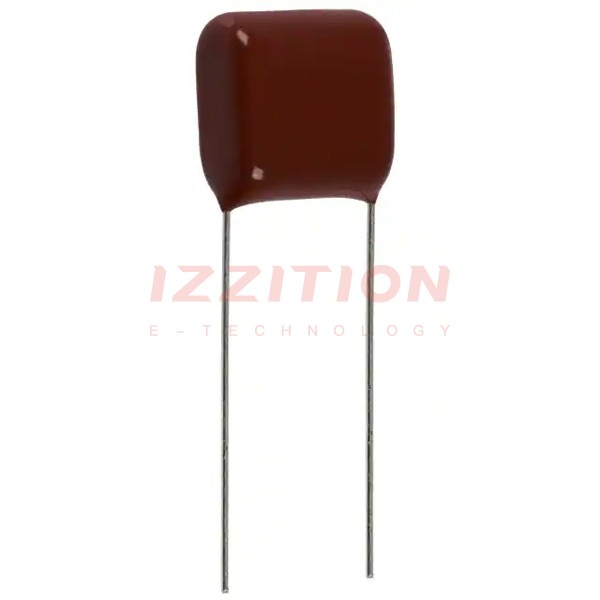

| Part Number | ECQ-E2155RKB | ECQ-E2155RKF | ECQ-E2185RKB | ECQ-E2125RKB | ECQ-E2155KB | ECQ-E2155RJB |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 1.5 µF | 1.5 µF | 1.8 µF | 1.2 µF | 1.5 µF | 1.5 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | - | - | - | - | 125V | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.602" L x 0.339" W (15.30mm x 8.60mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.819" L x 0.299" W (20.80mm x 7.60mm) | 0.602" L x 0.299" W (15.30mm x 7.60mm) | 0.602" L x 0.339" W (15.30mm x 8.60mm) | 0.602" L x 0.339" W (15.30mm x 8.60mm) |
| Height - Seated (Max) | 0.815" (20.70mm) | 0.858" (21.80mm) | 0.772" (19.60mm) | 0.772" (19.60mm) | 0.657" (16.70mm) | 0.815" (20.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.689" (17.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
