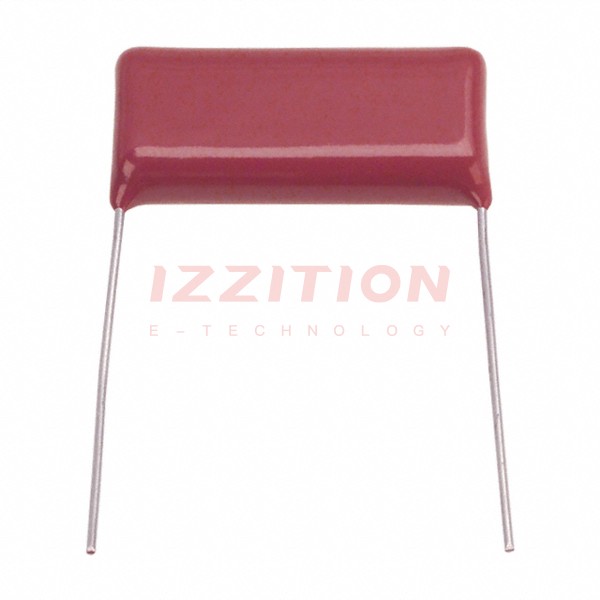

| Part Number | ECQ-E2155KS | ECQ-E2185KS | ECQ-E2125KS | ECQ-E2153KS | ECQ-E2154KS | ECQ-E2155KB | ECQ-E2155KF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Capacitance | 1.5 µF | 1.8 µF | 1.2 µF | 0.015 µF | 0.15 µF | 1.5 µF | 1.5 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - | 125V | 150V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.220" L x 0.335" W (31.00mm x 8.50mm) | 1.220" L x 0.335" W (31.00mm x 8.50mm) | 1.220" L x 0.295" W (31.00mm x 7.50mm) | 0.492" L x 0.197" W (12.50mm x 5.00mm) | 0.689" L x 0.217" W (17.50mm x 5.50mm) | 0.602" L x 0.339" W (15.30mm x 8.60mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.748" (19.00mm) | 0.650" (16.50mm) | 0.354" (9.00mm) | 0.453" (11.50mm) | 0.657" (16.70mm) | 0.701" (17.80mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.492" (12.50mm) | 0.591" (15.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
