Please send RFQ , we will respond immediately.

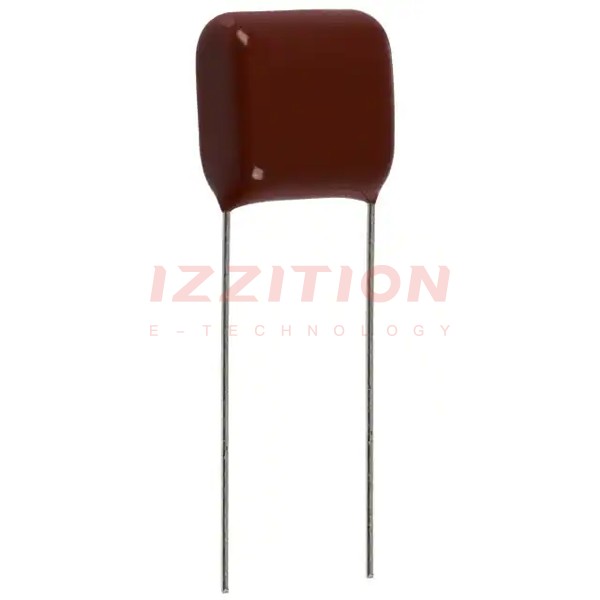

| Part Number | ECQ-E2155KB3 | ECQ-E2155KF3 | ECQ-E2155KBB | ECQ-E2125KB3 | ECQ-E2153KB3 | ECQ-E2154KB3 | ECQ-E2155JB3 | ECQ-E2155KB |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1.5 µF | 1.5 µF | 1.5 µF | 1.2 µF | 0.015 µF | 0.15 µF | 1.5 µF | 1.5 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% | ±10% |
| Voltage Rating - AC | - | - | - | - | - | - | - | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.602" L x 0.339" W (15.30mm x 8.60mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.602" L x 0.339" W (15.30mm x 8.60mm) | 0.602" L x 0.299" W (15.30mm x 7.60mm) | 0.311" L x 0.165" W (7.90mm x 4.20mm) | 0.311" L x 0.248" W (7.90mm x 6.30mm) | 0.602" L x 0.339" W (15.30mm x 8.60mm) | 0.602" L x 0.339" W (15.30mm x 8.60mm) |
| Height - Seated (Max) | 0.815" (20.70mm) | 0.858" (21.80mm) | 0.815" (20.70mm) | 0.772" (19.60mm) | 0.476" (12.10mm) | 0.638" (16.20mm) | 0.815" (20.70mm) | 0.657" (16.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.492" (12.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
