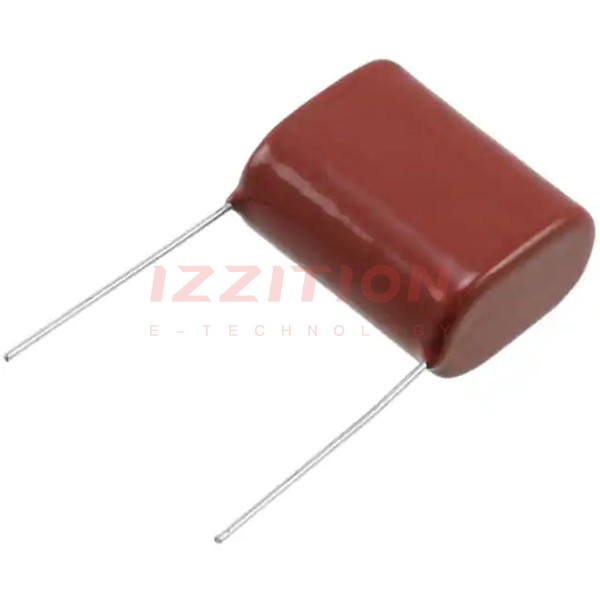

| Part Number | ECQ-E2106JF | ECQ-E2106KF | ECQ-E2106JFB | ECQ-E2106JFW | ECQ-E2103JF | ECQ-E2104JF | ECQ-E2105JF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF | 10000 pF | 0.1 µF | 1 µF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 150V | 150V | - | - | 150V | 150V | 150V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.220" L x 0.626" W (31.00mm x 15.90mm) | 1.220" L x 0.626" W (31.00mm x 15.90mm) | 1.220" L x 0.626" W (31.00mm x 15.90mm) | 1.220" L x 0.626" W (31.00mm x 15.90mm) | 0.406" L x 0.169" W (10.30mm x 4.30mm) | 0.406" L x 0.228" W (10.30mm x 5.80mm) | 0.728" L x 0.291" W (18.50mm x 7.40mm) |
| Height - Seated (Max) | 1.075" (27.30mm) | 1.055" (26.80mm) | 1.213" (30.80mm) | 1.213" (30.80mm) | 0.331" (8.40mm) | 0.370" (9.40mm) | 0.630" (16.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.591" (15.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
