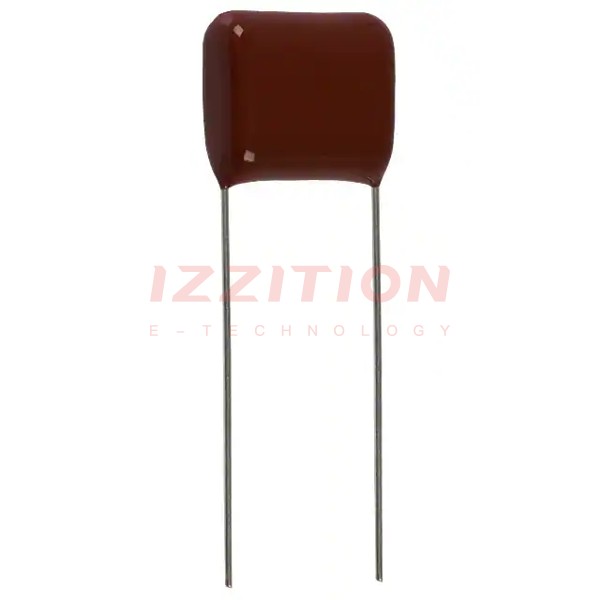

| Part Number | ECQ-E2105KB | ECQ-E2105KF | ECQ-E2125KB | ECQ-E2105KB3 | ECQ-E2105RKB | ECQ-E2105KS | ECQ-E2103KB | ECQ-E2104KB | ECQ-E2105JB |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1.2 µF | 1 µF | 1 µF | 1 µF | 10000 pF | 0.1 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 125V | 150V | 125V | - | - | - | 125V | 125V | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.602" L x 0.276" W (15.30mm x 7.00mm) | 0.728" L x 0.291" W (18.50mm x 7.40mm) | 0.602" L x 0.299" W (15.30mm x 7.60mm) | 0.602" L x 0.276" W (15.30mm x 7.00mm) | 0.602" L x 0.276" W (15.30mm x 7.00mm) | 1.220" L x 0.295" W (31.00mm x 7.50mm) | 0.311" L x 0.165" W (7.90mm x 4.20mm) | 0.311" L x 0.232" W (7.90mm x 5.90mm) | 0.602" L x 0.276" W (15.30mm x 7.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) | 0.630" (16.00mm) | 0.614" (15.60mm) | 0.748" (19.00mm) | 0.748" (19.00mm) | 0.571" (14.50mm) | 0.319" (8.10mm) | 0.394" (10.00mm) | 0.591" (15.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.492" (12.50mm) | 0.197" (5.00mm) | 0.492" (12.50mm) | 1.083" (27.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.492" (12.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
