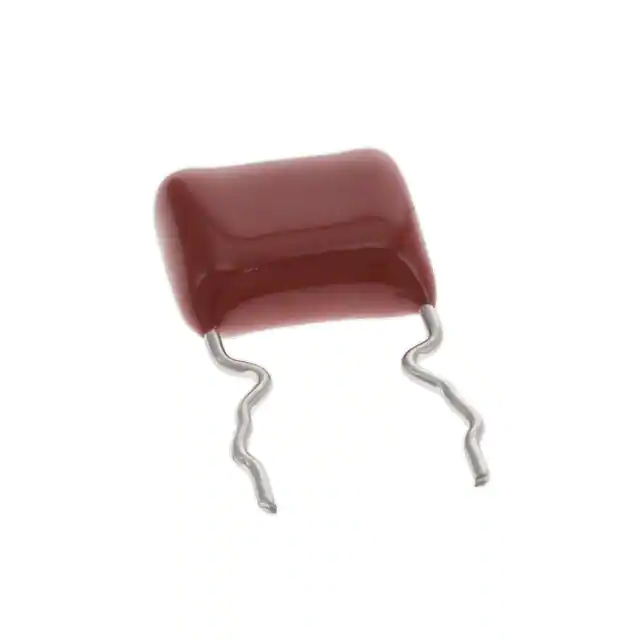

| Part Number | ECQ-E2104KFW | ECQ-E2124KFW | ECQ-E2106KFW | ECQ-E2104KF |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 0.12 µF | 10 µF | 0.1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | 150V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.406" L x 0.228" W (10.30mm x 5.80mm) | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 1.220" L x 0.626" W (31.00mm x 15.90mm) | 0.406" L x 0.228" W (10.30mm x 5.80mm) |
| Height - Seated (Max) | 0.528" (13.40mm) | 0.551" (14.00mm) | 1.213" (30.80mm) | 0.370" (9.40mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.886" (22.50mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
