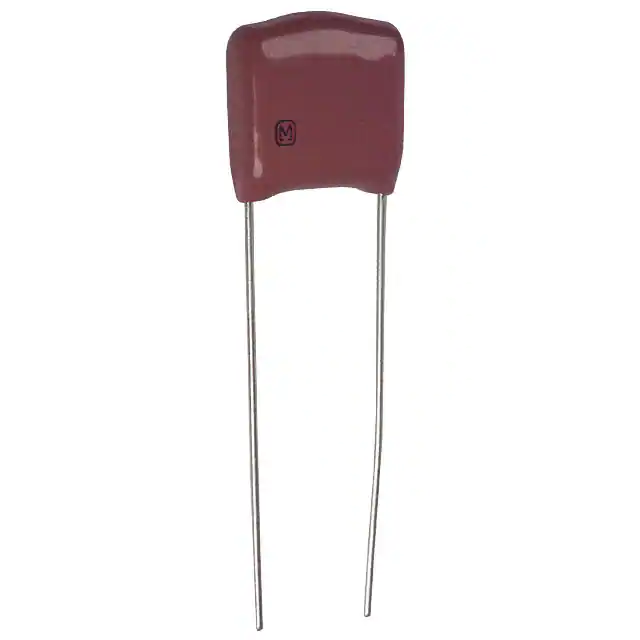

| Part Number | ECQ-E1824KF | ECQ-E1825KF | ECQ-E1824KFB | ECQ-E1824KFW | ECQ-E1824KF3 | ECQ-E1824KZ | ECQ-E1823KF | ECQ-E1824JF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Obsolete | Active |
| Capacitance | 0.82 µF | 8.2 µF | 0.82 µF | 0.82 µF | 0.82 µF | 0.82 µF | 0.082 µF | 0.82 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 63V | 63V | - | - | - | - | - | 63V |
| Voltage Rating - DC | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.669" L x 0.295" W (17.00mm x 7.50mm) | 0.307" L x 0.185" W (7.80mm x 4.70mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) | 0.827" (21.00mm) | 0.728" (18.50mm) | 0.728" (18.50mm) | 0.728" (18.50mm) | 0.551" (14.00mm) | 0.429" (10.90mm) | 0.571" (14.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.886" (22.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.591" (15.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
