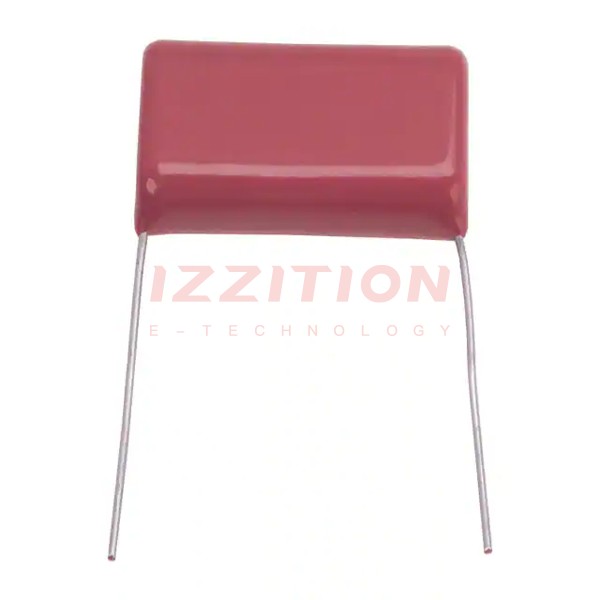

| Part Number | ECQ-E1565KZ | ECQ-E1564KZ | ECQ-E1565KF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Active |
| Capacitance | 5.6 µF | 0.56 µF | 5.6 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | 63V |
| Voltage Rating - DC | 100V | 100V | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.201" L x 0.492" W (30.50mm x 12.50mm) | 0.669" L x 0.256" W (17.00mm x 6.50mm) | 1.024" L x 0.327" W (26.00mm x 8.30mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.492" (12.50mm) | 0.728" (18.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 0.591" (15.00mm) | 0.886" (22.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
