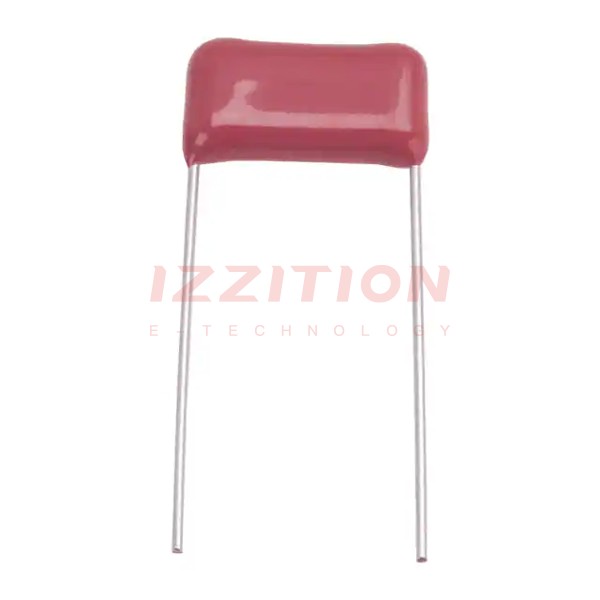

| Part Number | ECQ-E1474KZ | ECQ-E1475KZ | ECQ-E1274KZ | ECQ-E1474KF |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.47 µF | 4.7 µF | 0.27 µF | 0.47 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 100V | 100V | 100V | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.669" L x 0.217" W (17.00mm x 5.50mm) | 1.201" L x 0.433" W (30.50mm x 11.00mm) | 0.669" L x 0.177" W (17.00mm x 4.50mm) | 0.406" L x 0.236" W (10.30mm x 6.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.846" (21.50mm) | 0.354" (9.00mm) | 0.512" (13.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 1.083" (27.50mm) | 0.591" (15.00mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
