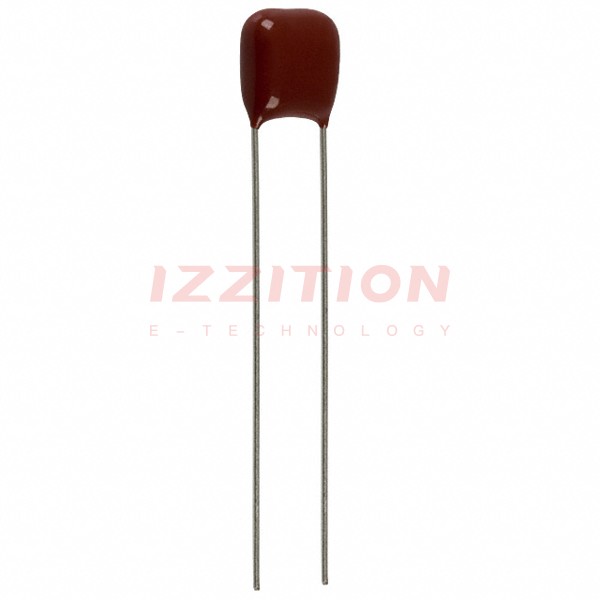

| Part Number | ECQ-E1393KF | ECQ-E1395KF | ECQ-E1394KF | ECQ-E12393KF | ECQ-E1333KF |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Obsolete | Active | Obsolete |
| Capacitance | 0.039 µF | 3.9 µF | 0.39 µF | 0.039 µF | 0.033 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | 63V | - | 125V | - |
| Voltage Rating - DC | 100V | 100V | 100V | 1250V (1.25kV) | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.307" L x 0.193" W (7.80mm x 4.90mm) | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.406" L x 0.248" W (10.30mm x 6.30mm) | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.307" L x 0.181" W (7.80mm x 4.60mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.685" (17.40mm) | 0.472" (12.00mm) | 0.689" (17.50mm) | 0.343" (8.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.886" (22.50mm) | 0.295" (7.50mm) | 0.886" (22.50mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
