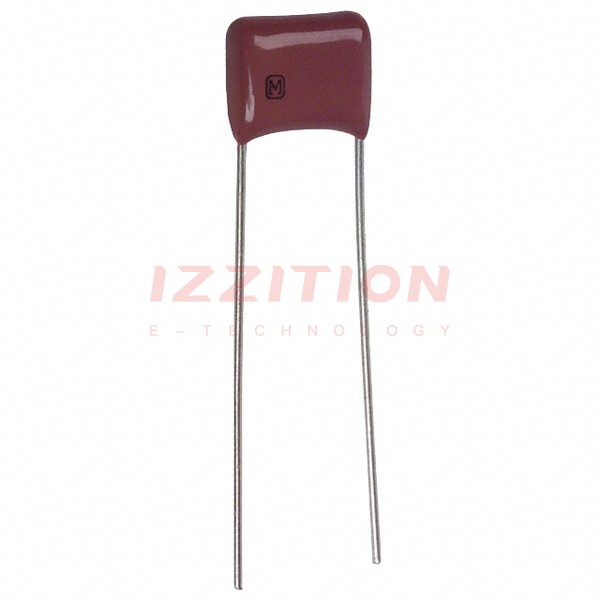

| Part Number | ECQ-E1224KF | ECQ-E1274KF | ECQ-E1225KF | ECQ-E1224KZ | ECQ-E10224KF | ECQ-E1124KF | ECQ-E1223KF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Active | Obsolete | Obsolete |
| Capacitance | 0.22 µF | 0.27 µF | 2.2 µF | 0.22 µF | 0.22 µF | 0.12 µF | 0.022 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | 63V | - | 125V | - | - |
| Voltage Rating - DC | 100V | 100V | 100V | 100V | 1000V (1kV) | 100V | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.406" L x 0.197" W (10.30mm x 5.00mm) | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.472" L x 0.197" W (12.00mm x 5.00mm) | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.307" L x 0.193" W (7.80mm x 4.90mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.512" (13.00mm) | 0.630" (16.00mm) | 0.453" (11.50mm) | 0.965" (24.50mm) | 0.335" (8.50mm) | 0.354" (9.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.886" (22.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
