Please send RFQ , we will respond immediately.

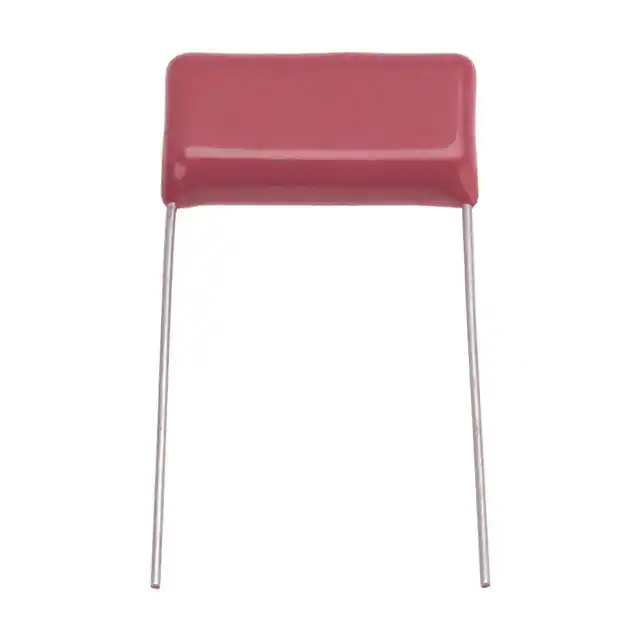

| Part Number | ECQ-E1155KZ | ECQ-E1185KZ | ECQ-E1105KZ | ECQ-E1125KZ | ECQ-E1154KZ | ECQ-E1155KF |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Capacitance | 1.5 µF | 1.8 µF | 1 µF | 1.2 µF | 0.15 µF | 1.5 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - | 63V |
| Voltage Rating - DC | 100V | 100V | 100V | 100V | 100V | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.004" L x 0.295" W (25.50mm x 7.50mm) | 1.004" L x 0.335" W (25.50mm x 8.50mm) | 0.669" L x 0.315" W (17.00mm x 8.00mm) | 0.669" L x 0.335" W (17.00mm x 8.50mm) | 0.472" L x 0.157" W (12.00mm x 4.00mm) | 0.728" L x 0.236" W (18.50mm x 6.00mm) |
| Height - Seated (Max) | 0.610" (15.50mm) | 0.669" (17.00mm) | 0.591" (15.00mm) | 0.669" (17.00mm) | 0.413" (10.50mm) | 0.567" (14.40mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
