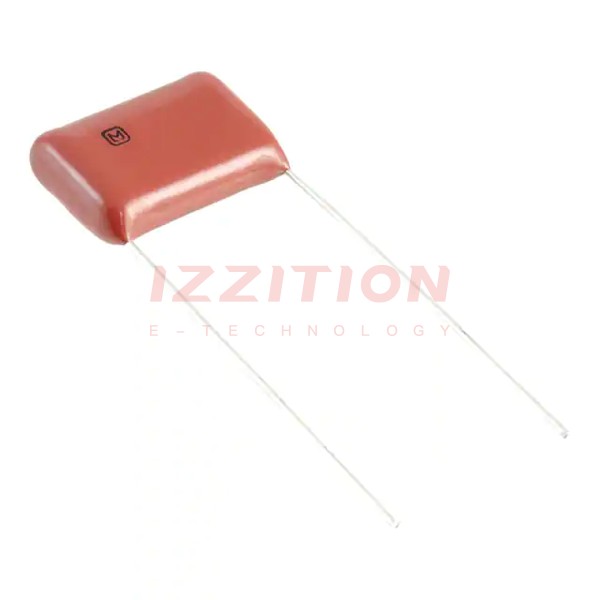

| Part Number | ECQ-E1125JF3 | ECQ-E1125JFB | ECQ-E1125JFW | ECQ-E1125KF3 | ECQ-E1155JF3 | ECQ-E1185JF3 | ECQ-E1225JF3 | ECQ-E1125JF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1.2 µF | 1.2 µF | 1.2 µF | 1.2 µF | 1.5 µF | 1.8 µF | 2.2 µF | 1.2 µF |
| Tolerance | ±5% | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | 63V |
| Voltage Rating - DC | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.728" L x 0.217" W (18.50mm x 5.50mm) |
| Height - Seated (Max) | 0.701" (17.80mm) | 0.740" (18.80mm) | 0.701" (17.80mm) | 0.701" (17.80mm) | 0.724" (18.40mm) | 0.764" (19.40mm) | 0.787" (20.00mm) | 0.543" (13.80mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.591" (15.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
