Please send RFQ , we will respond immediately.

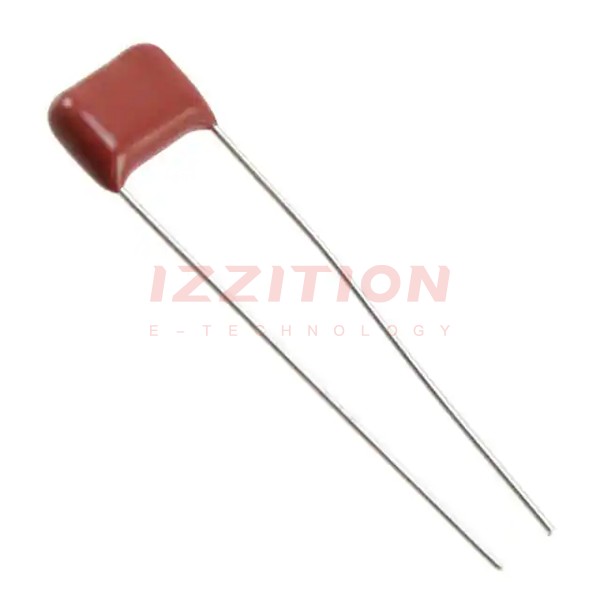

| Part Number | ECQ-E1124KF | ECQ-E1125KF | ECQ-E1124KZ | ECQ-E1154KF | ECQ-E1184KF | ECQ-E1224KF | ECQ-E1104KF | ECQ-E1123KF | ECQ-E1124JF |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.12 µF | 1.2 µF | 0.12 µF | 0.15 µF | 0.18 µF | 0.22 µF | 0.1 µF | 0.012 µF | 0.12 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | - | 63V | - | - | - | - | - | - | - |
| Voltage Rating - DC | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.406" L x 0.189" W (10.30mm x 4.80mm) | 0.406" L x 0.197" W (10.30mm x 5.00mm) | 0.307" L x 0.197" W (7.80mm x 5.00mm) | 0.307" L x 0.177" W (7.80mm x 4.50mm) | 0.406" L x 0.177" W (10.30mm x 4.50mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.543" (13.80mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.350" (8.90mm) | 0.354" (9.00mm) | 0.433" (11.00mm) | 0.339" (8.60mm) | 0.335" (8.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
