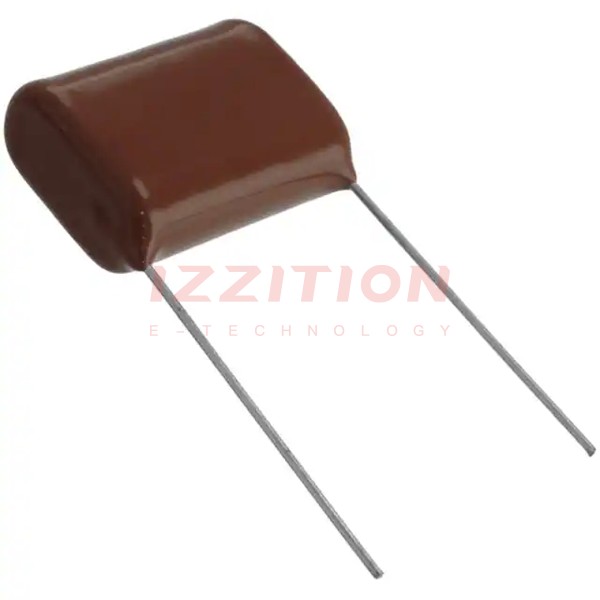

| Part Number | ECQ-E1106KFB | ECQ-E1106KFW | ECQ-E1106JFB | ECQ-E1106KF |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±5% | ±10% |
| Voltage Rating - AC | - | - | - | 63V |
| Voltage Rating - DC | 100V | 100V | 100V | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 1.024" L x 0.453" W (26.00mm x 11.50mm) |
| Height - Seated (Max) | 1.024" (26.00mm) | 1.024" (26.00mm) | 1.024" (26.00mm) | 0.866" (22.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.886" (22.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
