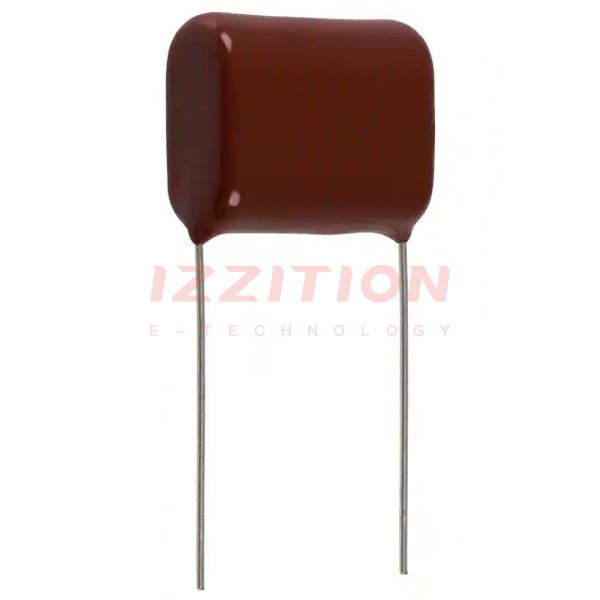

| Part Number | ECQ-E10224KF | ECQ-E10224KFB | ECQ-E1224KF | ECQ-E10224JF |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Obsolete | Active |
| Capacitance | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF |
| Tolerance | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 125V | 125V | - | 125V |
| Voltage Rating - DC | 1000V (1kV) | 1000V (1kV) | 100V | 1000V (1kV) |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.406" L x 0.197" W (10.30mm x 5.00mm) | 1.024" L x 0.472" W (26.00mm x 12.00mm) |
| Height - Seated (Max) | 0.965" (24.50mm) | 1.102" (28.00mm) | 0.354" (9.00mm) | 0.965" (24.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.689" (17.50mm) | 0.295" (7.50mm) | 0.886" (22.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
