Please send RFQ , we will respond immediately.

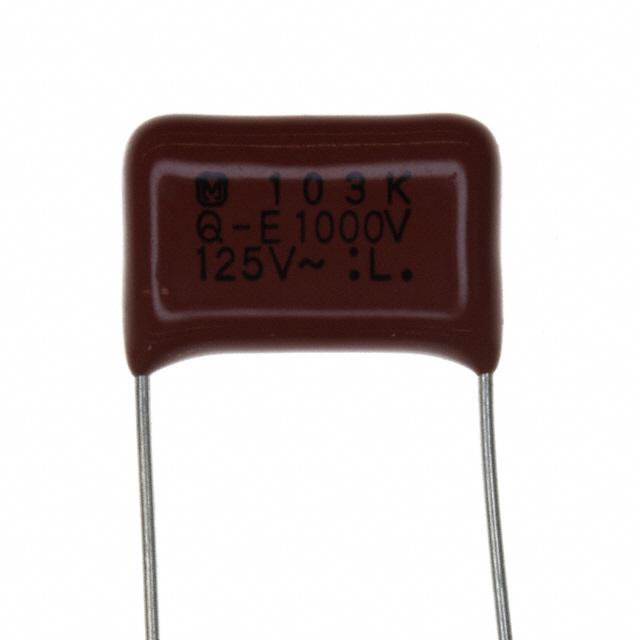

| Part Number | ECQ-E10103KF | ECQ-E1103KF |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Obsolete |
| Capacitance | 10000 pF | 10000 pF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 125V | - |
| Voltage Rating - DC | 1000V (1kV) | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.610" L x 0.276" W (15.50mm x 7.00mm) | 0.307" L x 0.181" W (7.80mm x 4.60mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.343" (8.70mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose |
| Ratings | - | - |
| Features | - | - |
