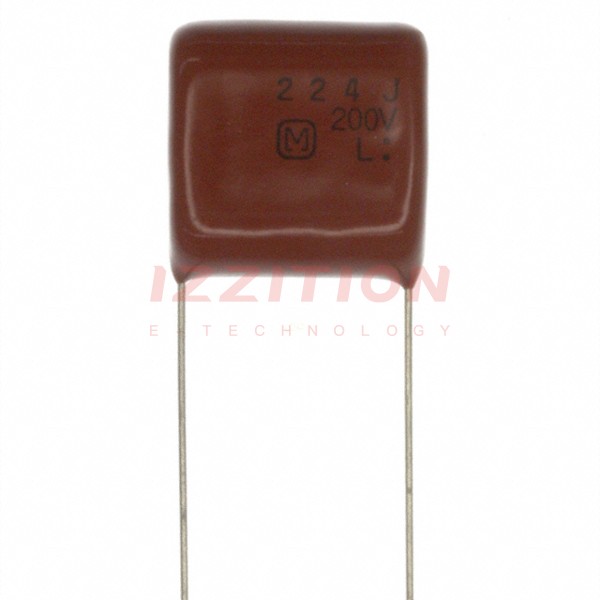

| Part Number | ECQ-B2224JF | ECQ-B2274JF | ECQ-B1224JF | ECQ-B2124JF | ECQ-B2222JF | ECQ-B2223JF |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.22 µF | 0.27 µF | 0.22 µF | 0.12 µF | 2200 pF | 0.022 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 200V | 200V | 100V | 200V | 200V | 200V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.748" L x 0.354" W (19.00mm x 9.00mm) | 0.945" L x 0.315" W (24.00mm x 8.00mm) | 0.512" L x 0.315" W (13.00mm x 8.00mm) | 0.748" L x 0.256" W (19.00mm x 6.50mm) | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.433" L x 0.236" W (11.00mm x 6.00mm) |
| Height - Seated (Max) | 0.768" (19.50mm) | 0.728" (18.50mm) | 0.638" (16.20mm) | 0.669" (17.00mm) | 0.335" (8.50mm) | 0.453" (11.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.787" (20.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
