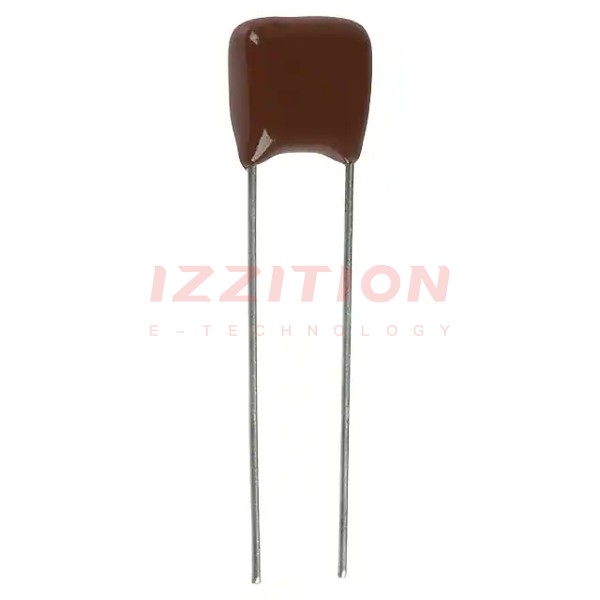

| Part Number | ECQ-B2123JF | ECQ-B2153JF | ECQ-B2183JF | ECQ-B2223JF | ECQ-B2823JF | ECQ-B2124JF | ECQ-B1123JF | ECQ-B2103JF | ECQ-B2122JF |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.012 µF | 0.015 µF | 0.018 µF | 0.022 µF | 0.082 µF | 0.12 µF | 0.012 µF | 10000 pF | 1200 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 200V | 200V | 200V | 200V | 200V | 200V | 100V | 200V | 200V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.433" L x 0.217" W (11.00mm x 5.50mm) | 0.433" L x 0.217" W (11.00mm x 5.50mm) | 0.433" L x 0.236" W (11.00mm x 6.00mm) | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.748" L x 0.256" W (19.00mm x 6.50mm) | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.433" L x 0.177" W (11.00mm x 4.50mm) | 0.335" L x 0.157" W (8.50mm x 4.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.453" (11.50mm) | 0.433" (11.00mm) | 0.453" (11.50mm) | 0.571" (14.50mm) | 0.669" (17.00mm) | 0.315" (8.00mm) | 0.433" (11.00mm) | 0.335" (8.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
