Please send RFQ , we will respond immediately.

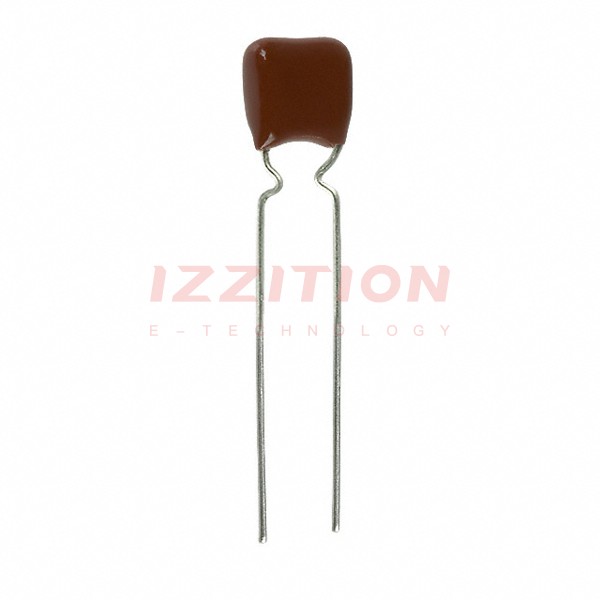

| Part Number | ECQ-B1H333JF3 | ECQ-B1H393JF3 | ECQ-B1H333JF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.033 µF | 0.039 µF | 0.033 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V |
| Dielectric Material | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.295" L x 0.138" W (7.50mm x 3.50mm) | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.295" L x 0.138" W (7.50mm x 3.50mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.315" (8.00mm) | 0.295" (7.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
