ECQ-B1H184JF3
  • Share:

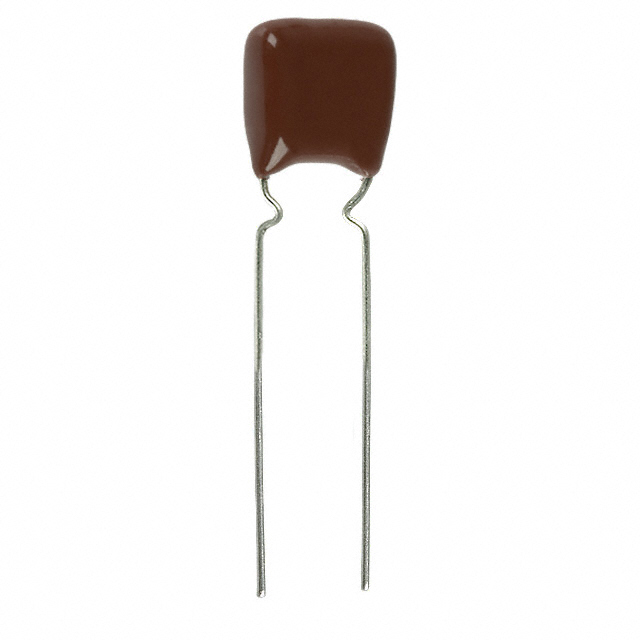

Panasonic Electronic Components ECQ-B1H184JF3

Manufacturer No:
ECQ-B1H184JF3
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Box (TB)
Datasheet:
ECQ-B1H184JF3 Datasheet
ECAD Model:
-
Description:
CAP FILM 0.18UF 5% 50VDC RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:0.18 µF
Tolerance:±5%
Voltage Rating - AC:-
Voltage Rating - DC:50V
Dielectric Material:Polyester
ESR (Equivalent Series Resistance):-
Operating Temperature:-40°C ~ 105°C
Mounting Type:Through Hole
Package / Case:Radial
Size / Dimension:0.433" L x 0.217" W (11.00mm x 5.50mm)
Height - Seated (Max):0.453" (11.50mm)
Termination:PC Pins
Lead Spacing:0.295" (7.50mm)
Applications:General Purpose
Ratings:-
Features:-
0 Remaining View Similar

In Stock

-
33

Please send RFQ , we will respond immediately.

Similar Products

Part Number ECQ-B1H184JF3 ECQ-B1H104JF3   ECQ-B1H124JF3   ECQ-B1H154JF3   ECQ-B1H183JF3   ECQ-B1H184JF
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Capacitance 0.18 µF 0.1 µF 0.12 µF 0.15 µF 0.018 µF 0.18 µF
Tolerance ±5% ±5% ±5% ±5% ±5% ±5%
Voltage Rating - AC - - - - - -
Voltage Rating - DC 50V 50V 50V 50V 50V 50V
Dielectric Material Polyester Polyester Polyester Polyester Polyester Polyester
ESR (Equivalent Series Resistance) - - - - - -
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case Radial Radial Radial Radial Radial Radial
Size / Dimension 0.433" L x 0.217" W (11.00mm x 5.50mm) 0.315" L x 0.197" W (8.00mm x 5.00mm) 0.433" L x 0.197" W (11.00mm x 5.00mm) 0.433" L x 0.197" W (11.00mm x 5.00mm) 0.295" L x 0.118" W (7.50mm x 3.00mm) 0.433" L x 0.217" W (11.00mm x 5.50mm)
Height - Seated (Max) 0.453" (11.50mm) 0.433" (11.00mm) 0.413" (10.50mm) 0.433" (11.00mm) 0.276" (7.00mm) 0.453" (11.50mm)
Termination PC Pins PC Pins PC Pins PC Pins PC Pins PC Pins
Lead Spacing 0.295" (7.50mm) 0.197" (5.00mm) 0.197" (5.00mm) 0.295" (7.50mm) 0.197" (5.00mm) 0.295" (7.50mm)
Applications General Purpose General Purpose General Purpose General Purpose General Purpose General Purpose
Ratings - - - - - -
Features - - - - - -
