Please send RFQ , we will respond immediately.

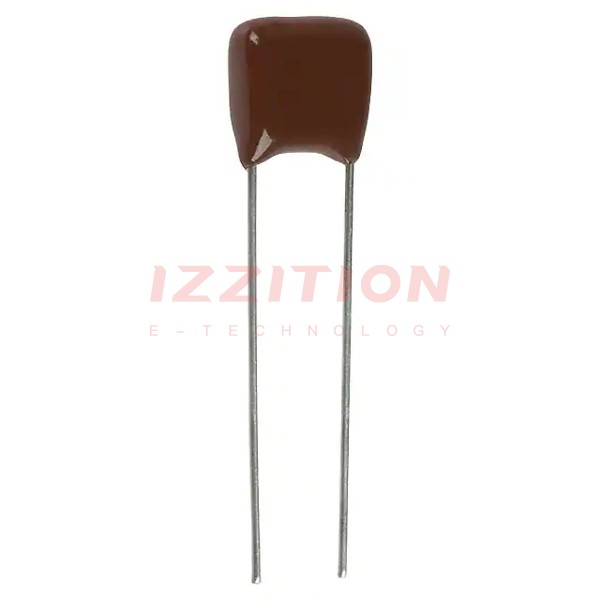

| Part Number | ECQ-B1H184JF | ECQ-B1H184JF3 | ECQ-B1184JF | ECQ-B1H104JF | ECQ-B1H124JF | ECQ-B1H154JF | ECQ-B1H182JF | ECQ-B1H183JF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.18 µF | 0.18 µF | 0.18 µF | 0.1 µF | 0.12 µF | 0.15 µF | 1800 pF | 0.018 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 100V | 50V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.433" L x 0.217" W (11.00mm x 5.50mm) | 0.433" L x 0.217" W (11.00mm x 5.50mm) | 0.512" L x 0.295" W (13.00mm x 7.50mm) | 0.315" L x 0.197" W (8.00mm x 5.00mm) | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.276" L x 0.118" W (7.00mm x 3.00mm) | 0.295" L x 0.118" W (7.50mm x 3.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.453" (11.50mm) | 0.606" (15.40mm) | 0.433" (11.00mm) | 0.413" (10.50mm) | 0.433" (11.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
