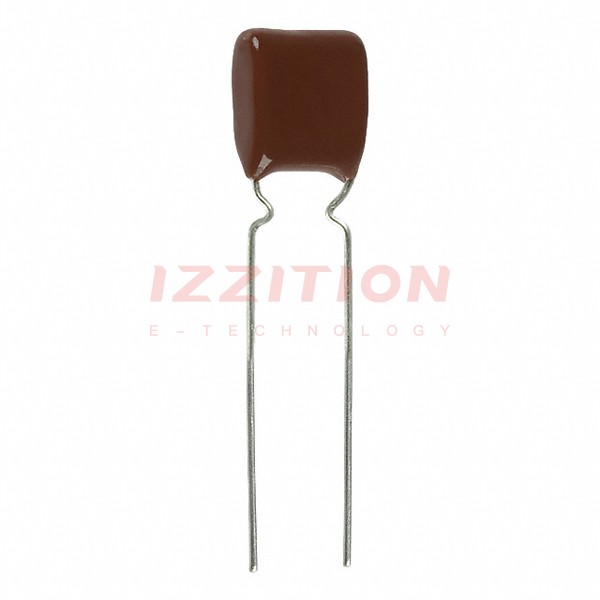

| Part Number | ECQ-B1H124JF3 | ECQ-B1H154JF3 | ECQ-B1H184JF3 | ECQ-B1H224JF3 | ECQ-B1H104JF3 | ECQ-B1H123JF3 | ECQ-B1H124JF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.12 µF | 0.15 µF | 0.18 µF | 0.22 µF | 0.1 µF | 0.012 µF | 0.12 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.433" L x 0.217" W (11.00mm x 5.50mm) | 0.433" L x 0.236" W (11.00mm x 6.00mm) | 0.315" L x 0.197" W (8.00mm x 5.00mm) | 0.287" L x 0.130" W (7.30mm x 3.30mm) | 0.433" L x 0.197" W (11.00mm x 5.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.433" (11.00mm) | 0.453" (11.50mm) | 0.492" (12.50mm) | 0.433" (11.00mm) | 0.287" (7.30mm) | 0.413" (10.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
