Please send RFQ , we will respond immediately.

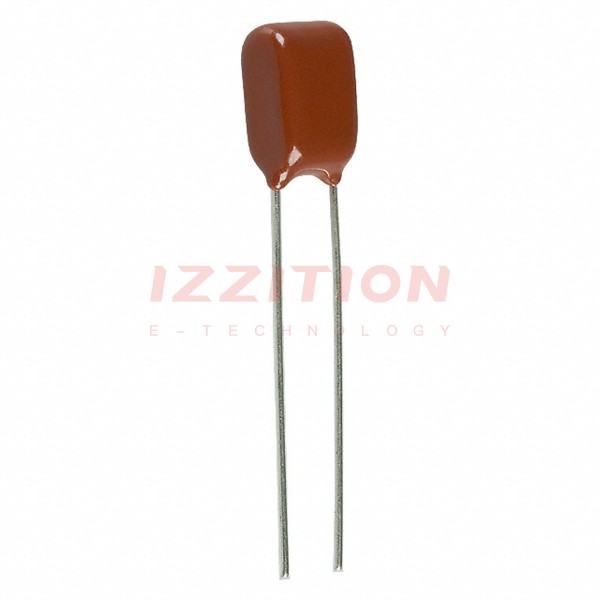

| Part Number | ECQ-B1393JF | ECQ-B1H393JF | ECQ-B1394JF | ECQ-B2393JF | ECQ-B1333JF | ECQ-B1392JF |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.039 µF | 0.039 µF | 0.39 µF | 0.039 µF | 0.033 µF | 3900 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 100V | 50V | 100V | 200V | 100V | 100V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.295" L x 0.236" W (7.50mm x 6.00mm) | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.531" L x 0.197" W (13.50mm x 5.00mm) | 0.295" L x 0.217" W (7.50mm x 5.50mm) | 0.283" L x 0.118" W (7.20mm x 3.00mm) |
| Height - Seated (Max) | 0.480" (12.20mm) | 0.315" (8.00mm) | 0.787" (20.00mm) | 0.532" (13.50mm) | 0.433" (11.00mm) | 0.295" (7.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
