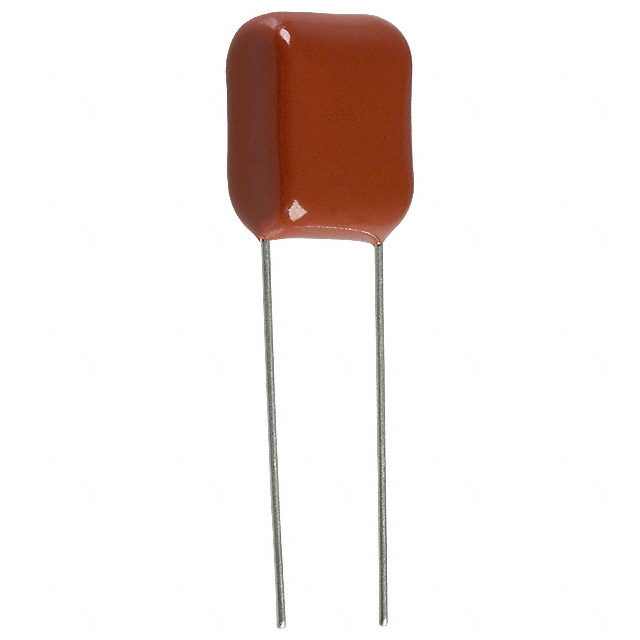

| Part Number | ECQ-B1334JF | ECQ-B1H334JF | ECQ-B1394JF | ECQ-B2334JF | ECQ-B1331JF | ECQ-B1333JF |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.33 µF | 0.33 µF | 0.39 µF | 0.33 µF | 330 pF | 0.033 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 100V | 50V | 100V | 200V | 100V | 100V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.512" L x 0.354" W (13.00mm x 9.00mm) | 0.512" L x 0.256" W (13.00mm x 6.50mm) | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.295" L x 0.217" W (7.50mm x 5.50mm) |
| Height - Seated (Max) | 0.748" (19.00mm) | 0.551" (14.00mm) | 0.787" (20.00mm) | 0.768" (19.50mm) | 0.276" (7.00mm) | 0.433" (11.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
