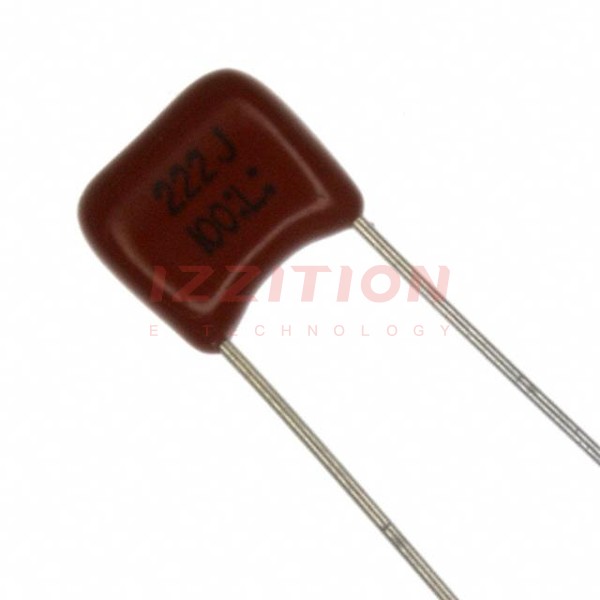

| Part Number | ECQ-B1222JF | ECQ-B1H222JF | ECQ-B1272JF | ECQ-B1822JF | ECQ-B1223JF | ECQ-B1224JF | ECQ-B2222JF | ECQ-B1122JF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 2200 pF | 2200 pF | 2700 pF | 8200 pF | 0.022 µF | 0.22 µF | 2200 pF | 1200 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 100V | 50V | 100V | 100V | 100V | 100V | 200V | 100V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.276" L x 0.118" W (7.00mm x 3.00mm) | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.283" L x 0.126" W (7.20mm x 3.20mm) | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.512" L x 0.315" W (13.00mm x 8.00mm) | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.283" L x 0.118" W (7.20mm x 3.00mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.276" (7.00mm) | 0.295" (7.50mm) | 0.315" (8.00mm) | 0.394" (10.00mm) | 0.638" (16.20mm) | 0.335" (8.50mm) | 0.276" (7.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
