Please send RFQ , we will respond immediately.

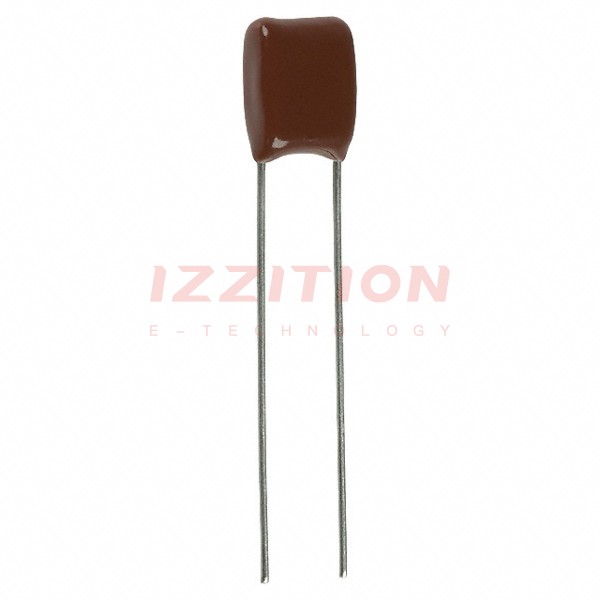

| Part Number | ECQ-B1183JF | ECQ-B1H183JF | ECQ-B1683JF | ECQ-B1184JF | ECQ-B2183JF | ECQ-B1103JF | ECQ-B1123JF | ECQ-B1153JF | ECQ-B1181JF |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.018 µF | 0.018 µF | 0.068 µF | 0.18 µF | 0.018 µF | 10000 pF | 0.012 µF | 0.015 µF | 180 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 100V | 50V | 100V | 100V | 200V | 100V | 100V | 100V | 100V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.295" L x 0.118" W (7.50mm x 3.00mm) | 0.394" L x 0.217" W (10.00mm x 5.50mm) | 0.512" L x 0.295" W (13.00mm x 7.50mm) | 0.433" L x 0.217" W (11.00mm x 5.50mm) | 0.283" L x 0.126" W (7.20mm x 3.20mm) | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.283" L x 0.157" W (7.20mm x 4.00mm) | 0.283" L x 0.118" W (7.20mm x 3.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.276" (7.00mm) | 0.528" (13.40mm) | 0.606" (15.40mm) | 0.433" (11.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.335" (8.50mm) | 0.276" (7.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
