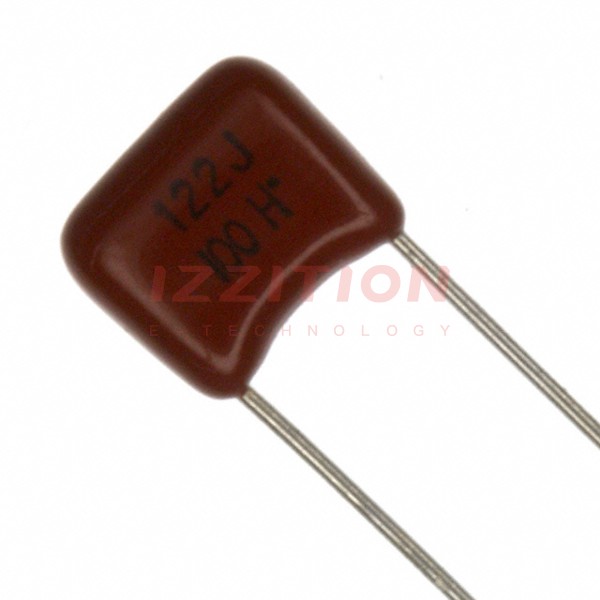

| Part Number | ECQ-B1122JF | ECQ-B1H122JF | ECQ-B1152JF | ECQ-B1222JF | ECQ-B1822JF | ECQ-B1123JF | ECQ-B1124JF | ECQ-B2122JF | ECQ-B1102JF | ECQ-B1121JF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1200 pF | 1200 pF | 1500 pF | 2200 pF | 8200 pF | 0.012 µF | 0.12 µF | 1200 pF | 1000 pF | 120 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 100V | 50V | 100V | 100V | 100V | 100V | 100V | 200V | 100V | 100V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.276" L x 0.118" W (7.00mm x 3.00mm) | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.283" L x 0.126" W (7.20mm x 3.20mm) | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.413" L x 0.276" W (10.50mm x 7.00mm) | 0.335" L x 0.157" W (8.50mm x 4.00mm) | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.283" L x 0.118" W (7.20mm x 3.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.295" (7.50mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.638" (16.20mm) | 0.335" (8.50mm) | 0.276" (7.00mm) | 0.276" (7.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - |
