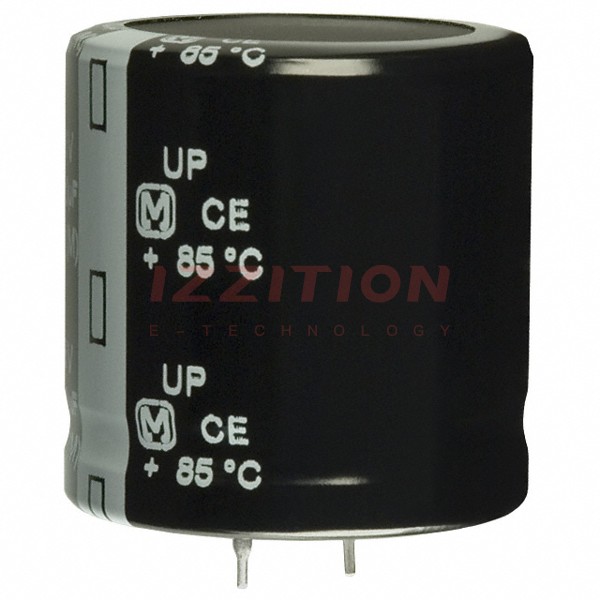

| Part Number | ECO-S2GP391EX | ECO-S2GP331EX | ECO-S2GP391EA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 390 µF | 330 µF | 390 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 400 V | 400 V | 400 V |
| ESR (Equivalent Series Resistance) | 468mOhm @ 120Hz | 553mOhm @ 120Hz | 468mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.13 A @ 120 Hz | 1.9 A @ 120 Hz | 2.13 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.982 A @ 100 kHz | 2.66 A @ 100 kHz | 2.982 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) | 1.181" (30.00mm) | 1.575" (40.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
