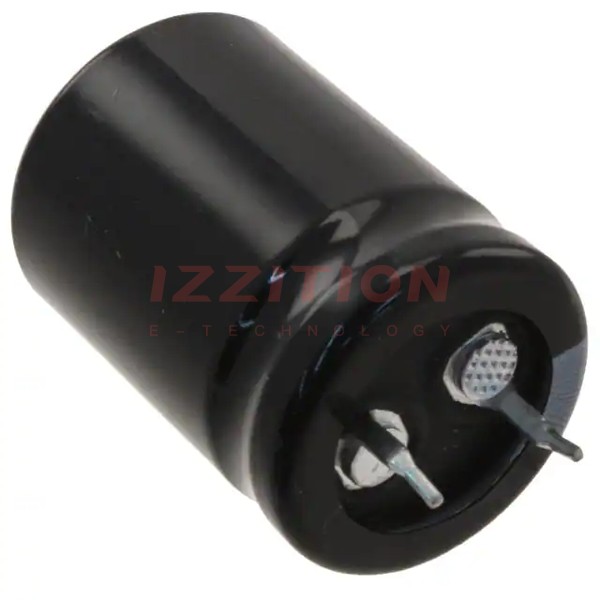

| Part Number | ECO-S2GB101BA | ECO-S2GB101CA | ECO-S2GB121BA | ECO-S2GB151BA | ECO-S2GB181BA | ECO-S2WB101BA | ECO-S2GA101BA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 100 µF | 100 µF | 120 µF | 150 µF | 180 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 400 V | 400 V | 400 V | 400 V | 400 V | 450 V | 400 V |
| ESR (Equivalent Series Resistance) | 1.658Ohm @ 120Hz | 1.658Ohm @ 120Hz | 1.382Ohm @ 120Hz | 1.105Ohm @ 120Hz | 921mOhm @ 120Hz | 1.658Ohm @ 120Hz | 1.326Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 690 mA @ 120 Hz | 690 mA @ 120 Hz | 750 mA @ 120 Hz | 820 mA @ 120 Hz | 950 mA @ 120 Hz | 640 mA @ 120 Hz | 690 mA @ 120 Hz |
| Ripple Current @ High Frequency | 786.6 mA @ 100 kHz | 786.6 mA @ 100 kHz | 855 mA @ 100 kHz | 934.8 mA @ 100 kHz | 1.083 A @ 100 kHz | 729.6 mA @ 100 kHz | 966 mA @ 100 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) | 0.984" (25.00mm) | 1.378" (35.00mm) | 1.575" (40.00mm) | 1.772" (45.00mm) | 1.378" (35.00mm) | 1.457" (37.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
