ECO-S2EP561CX
  • Share:

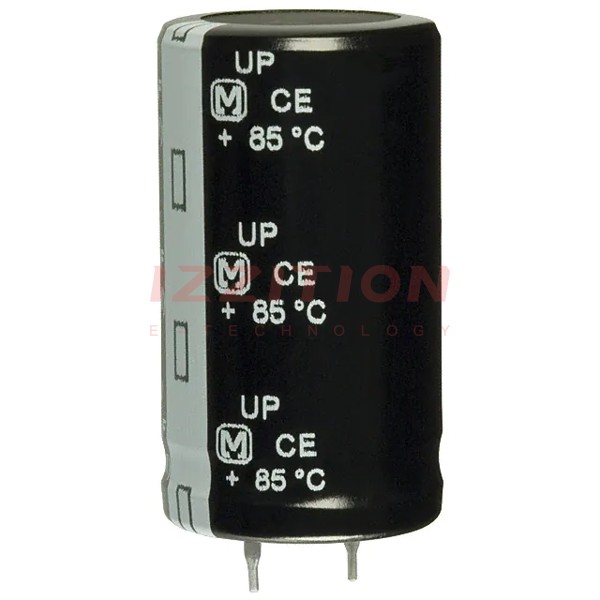

Panasonic Electronic Components ECO-S2EP561CX

Manufacturer No:
ECO-S2EP561CX
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
ECO-S2EP561CX Datasheet
ECAD Model:
-
Description:
CAP ALUM 560UF 20% 250V SNAP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:560 µF
Tolerance:±20%
Voltage - Rated:250 V
ESR (Equivalent Series Resistance):326mOhm @ 120Hz
Lifetime @ Temp.:3000 Hrs @ 85°C
Operating Temperature:-40°C ~ 85°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:2.25 A @ 120 Hz
Ripple Current @ High Frequency:3.15 A @ 100 kHz
Impedance:-
Lead Spacing:0.394" (10.00mm)
Size / Dimension:0.984" Dia (25.00mm)
Height - Seated (Max):1.575" (40.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can - Snap-In
0 Remaining View Similar

In Stock

-
258

Please send RFQ , we will respond immediately.
