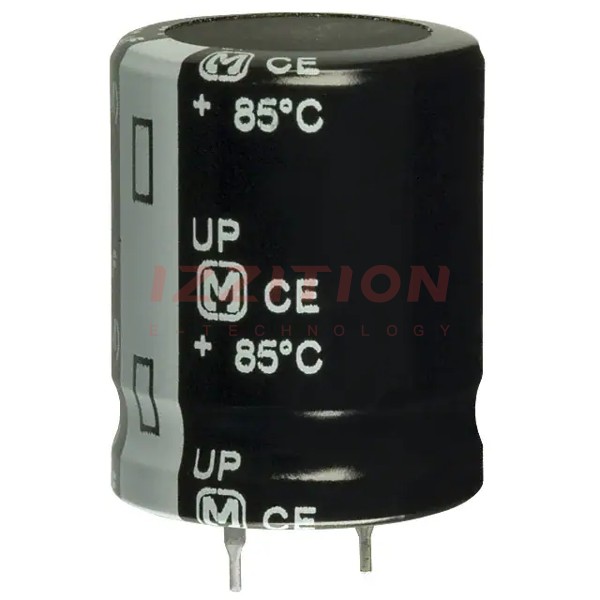

| Part Number | ECO-S2EP331CA | ECO-S2DP331CA | ECO-S2EB331CA | ECO-S2EP331BA |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 330 µF | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 250 V | 200 V | 250 V | 250 V |
| ESR (Equivalent Series Resistance) | 502mOhm @ 120Hz | 553mOhm @ 120Hz | 502mOhm @ 120Hz | 553mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 105°C | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.75 A @ 120 Hz | 1.56 A @ 120 Hz | 1.2 A @ 120 Hz | 1.75 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.45 A @ 100 kHz | - | 1.368 A @ 100 kHz | 2.45 A @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) | 0.984" (25.00mm) | 1.181" (30.00mm) | 1.378" (35.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
