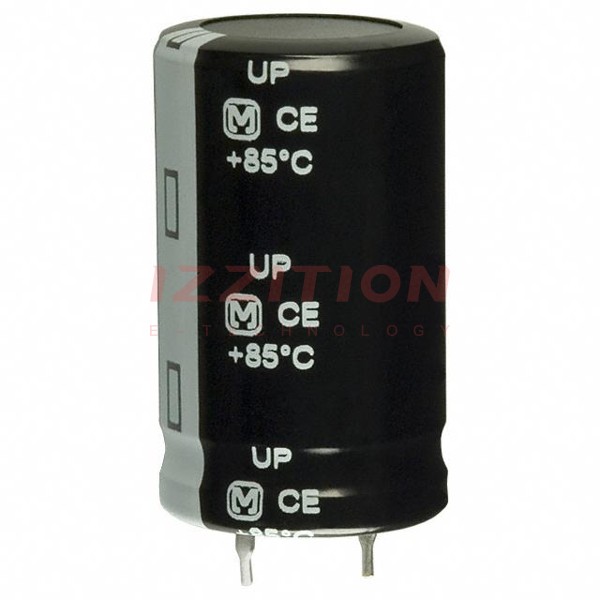

| Part Number | ECO-S2DP561BA | ECO-S2DP561DA | ECO-S2AP561BA | ECO-S2DA561BA |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 560 µF | 560 µF | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 200 V | 200 V | 100 V | 200 V |
| ESR (Equivalent Series Resistance) | 326mOhm @ 120Hz | 326mOhm @ 120Hz | 385mOhm @ 120Hz | 296mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.43 A @ 120 Hz | 2.43 A @ 120 Hz | 1.32 A @ 120 Hz | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.402 A @ 100 kHz | 3.402 A @ 100 kHz | 1.518 A @ 100 kHz | 2.1 A @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 1.181" Dia (30.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 1.850" (47.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
