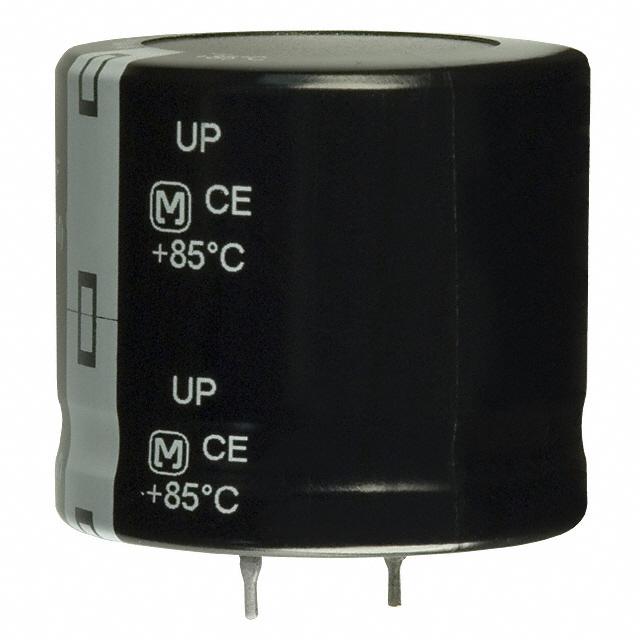

| Part Number | ECO-S2DP102EA | ECO-S2DP122EA | ECO-S2DP152EA | ECO-S2DP182EA | ECO-S2DA102EA | ECO-S2DB102EA | ECO-S2DP102CA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 µF | 1200 µF | 1500 µF | 1800 µF | 1000 µF | 1000 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 200 V | 200 V | 200 V | 200 V | 200 V | 200 V | 200 V |
| ESR (Equivalent Series Resistance) | 199mOhm @ 120Hz | 166mOhm @ 120Hz | 144mOhm @ 120Hz | 120mOhm @ 120Hz | 216mOhm @ 120Hz | 216mOhm @ 120Hz | 199mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 3.25 A @ 120 Hz | 3.5 A @ 120 Hz | 3.87 A @ 120 Hz | 4.32 A @ 120 Hz | 2.2 A @ 120 Hz | 2.2 A @ 120 Hz | 3.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.55 A @ 100 kHz | 4.9 A @ 100 kHz | 5.418 A @ 100 kHz | 6.048 A @ 100 kHz | 3.08 A @ 100 kHz | 2.508 A @ 100 kHz | 4.55 A @ 100 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) | 1.378" (35.00mm) | 1.575" (40.00mm) | 1.772" (45.00mm) | 1.457" (37.00mm) | 1.181" (30.00mm) | 1.969" (50.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
