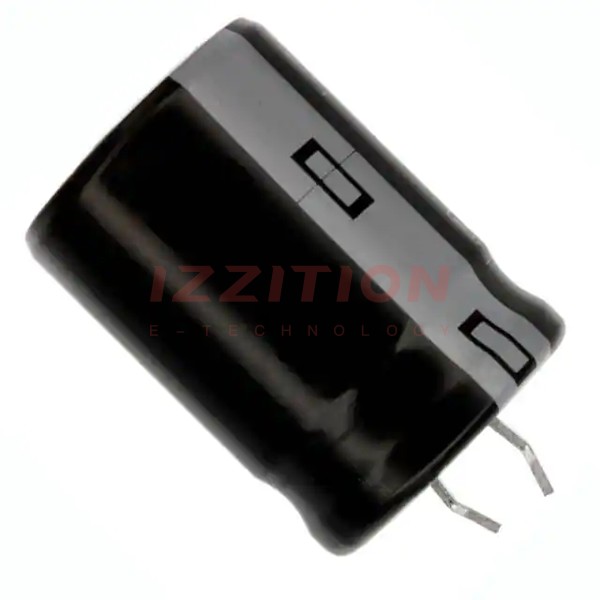

| Part Number | ECO-S1KA152BA | ECO-S1KP152BA | ECO-S1VA152BA | ECO-S1KA152CA | ECO-S1KA182BA | ECO-S1HA152BA | ECO-S1JA152BA | ECO-S1KA102BA | ECO-S1KA122BA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1500 µF | 1500 µF | 1500 µF | 1500 µF | 1800 µF | 1500 µF | 1500 µF | 1000 µF | 1200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 80 V | 80 V | 35 V | 80 V | 80 V | 50 V | 63 V | 80 V | 80 V |
| ESR (Equivalent Series Resistance) | 133mOhm @ 120Hz | 177mOhm @ 120Hz | 287mOhm @ 120Hz | 133mOhm @ 120Hz | 111mOhm @ 120Hz | 155mOhm @ 120Hz | 188mOhm @ 120Hz | 182mOhm @ 120Hz | 166mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 85°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 120 Hz | 2.26 A @ 120 Hz | 1.1 A @ 120 Hz | 1.7 A @ 120 Hz | 1.8 A @ 120 Hz | 1.25 A @ 120 Hz | 1.5 A @ 120 Hz | 1.3 A @ 120 Hz | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.955 A @ 100 kHz | 2.599 A @ 100 kHz | 1.265 A @ 100 kHz | 1.955 A @ 100 kHz | 2.07 A @ 100 kHz | 1.438 A @ 100 kHz | 1.725 A @ 100 kHz | 1.495 A @ 100 kHz | 1.725 A @ 100 kHz |
| Impedance | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.181" (30.00mm) | 1.063" (27.00mm) | 1.260" (32.00mm) | 1.654" (42.00mm) | 1.063" (27.00mm) | 1.260" (32.00mm) | 1.260" (32.00mm) | 1.260" (32.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
