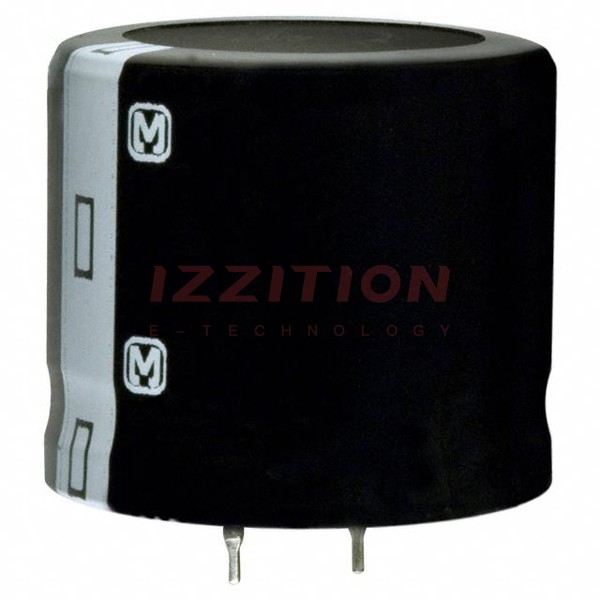

| Part Number | ECO-S1JA392EA | ECO-S1JA332EA | ECO-S1JA392CA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 3900 µF | 3300 µF | 3900 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | 77mOhm @ 120Hz | 90mOhm @ 120Hz | 77mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.7 A @ 120 Hz | 2.5 A @ 120 Hz | 2.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.105 A @ 100 kHz | 2.875 A @ 100 kHz | 3.105 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) | 1.063" (27.00mm) | 1.850" (47.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
