Please send RFQ , we will respond immediately.

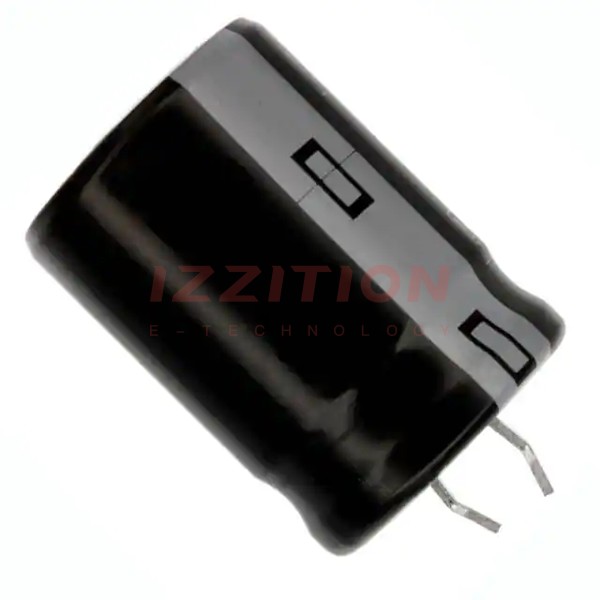

| Part Number | ECO-S1JA222BA | ECO-S1VA222BA | ECO-S1JA222CA | ECO-S1JA272BA | ECO-S1KA222BA | ECO-S1EA222BA | ECO-S1HA222BA | ECO-S1JA122BA |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 2200 µF | 2200 µF | 2200 µF | 2700 µF | 2200 µF | 2200 µF | 2200 µF | 1200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 35 V | 63 V | 63 V | 80 V | 25 V | 50 V | 63 V |
| ESR (Equivalent Series Resistance) | 128mOhm @ 120Hz | 196mOhm @ 120Hz | 128mOhm @ 120Hz | 104mOhm @ 120Hz | 90mOhm @ 120Hz | 241mOhm @ 120Hz | 105mOhm @ 120Hz | 235mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz | 1.48 A @ 120 Hz | 2 A @ 120 Hz | 2.2 A @ 120 Hz | 2.1 A @ 120 Hz | 1.3 A @ 120 Hz | 1.7 A @ 120 Hz | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz | 1.702 A @ 100 kHz | 2.3 A @ 100 kHz | 2.53 A @ 100 kHz | 2.415 A @ 100 kHz | 1.495 A @ 100 kHz | 1.955 A @ 100 kHz | 1.61 A @ 100 kHz |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.063" (27.00mm) | 1.260" (32.00mm) | 1.654" (42.00mm) | 1.850" (47.00mm) | 1.063" (27.00mm) | 1.457" (37.00mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
