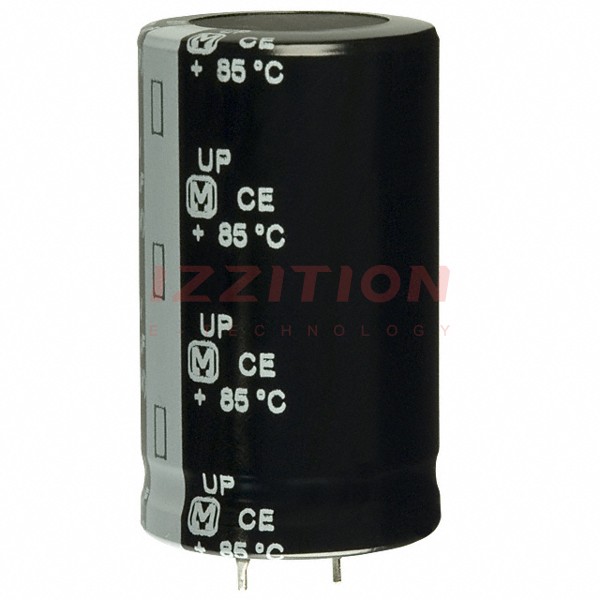

| Part Number | ECO-S1EP333DA | ECO-S1EP333EA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Capacitance | 33000 µF | 33000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | 20mOhm @ 120Hz | 20mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 6.84 A @ 120 Hz | 6.84 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.866 A @ 100 kHz | 7.866 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) | 1.575" (40.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In |
