Please send RFQ , we will respond immediately.

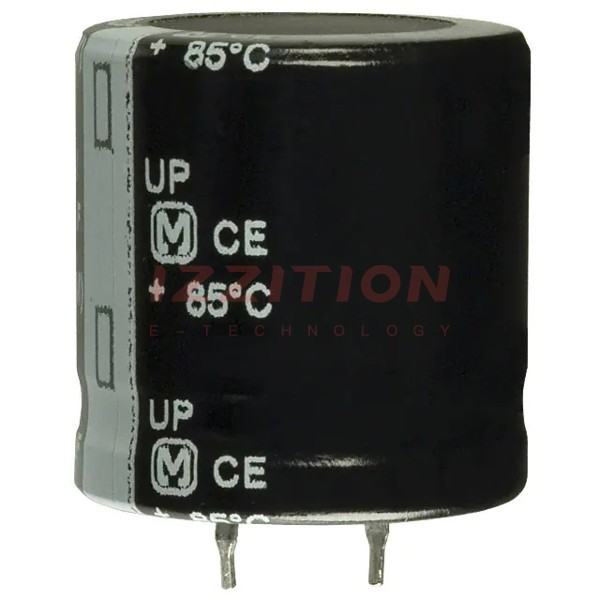

| Part Number | ECO-S1EP123DA | ECO-S1EP153DA | ECO-S1EP183DA | ECO-S1EP223DA | ECO-S1HP123DA | ECO-S1EP103DA | ECO-S1EP123BA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 12000 µF | 15000 µF | 18000 µF | 22000 µF | 12000 µF | 10000 µF | 12000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 50 V | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | 48mOhm @ 120Hz | 39mOhm @ 120Hz | 35mOhm @ 120Hz | 29mOhm @ 120Hz | 32mOhm @ 120Hz | 58mOhm @ 120Hz | 48mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 4.1 A @ 120 Hz | 4.63 A @ 120 Hz | 5.47 A @ 120 Hz | 6.1 A @ 120 Hz | 5.58 A @ 120 Hz | 3.78 A @ 120 Hz | 4.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.715 A @ 100 kHz | 5.325 A @ 100 kHz | 6.291 A @ 100 kHz | 7.015 A @ 100 kHz | 6.417 A @ 100 kHz | 4.347 A @ 100 kHz | 4.715 A @ 100 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) | 1.181" (30.00mm) | 1.378" (35.00mm) | 1.575" (40.00mm) | 1.772" (45.00mm) | 0.984" (25.00mm) | 1.575" (40.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
