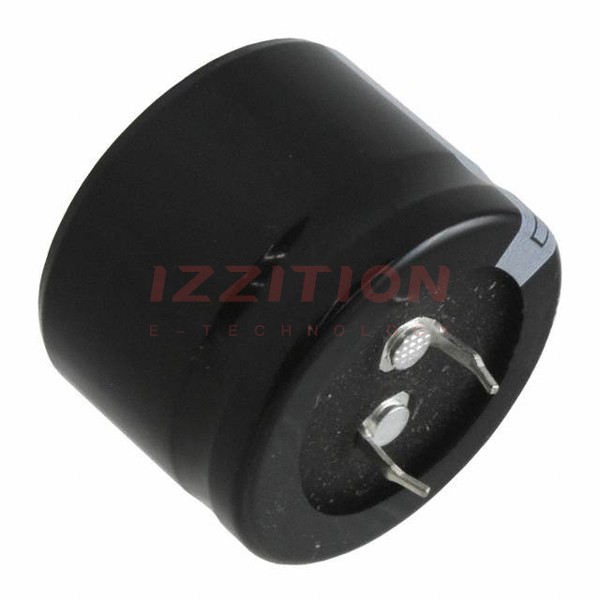

| Part Number | ECO-S1EA123EA | ECO-S1EA153EA | ECO-S1EA183EA | ECO-S1EA223EA | ECO-S1HA123EA | ECO-S1EA123BA |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 12000 µF | 15000 µF | 18000 µF | 22000 µF | 12000 µF | 12000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 50 V | 25 V |
| ESR (Equivalent Series Resistance) | 44mOhm @ 120Hz | 36mOhm @ 120Hz | 30mOhm @ 120Hz | 25mOhm @ 120Hz | 28mOhm @ 120Hz | 44mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz | 3.6 A @ 120 Hz | 3.9 A @ 120 Hz | 4.3 A @ 120 Hz | 4.5 A @ 120 Hz | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.68 A @ 100 kHz | 4.14 A @ 100 kHz | 4.485 A @ 100 kHz | 4.945 A @ 100 kHz | 5.175 A @ 100 kHz | 3.68 A @ 100 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.260" (32.00mm) | 1.457" (37.00mm) | 1.457" (37.00mm) | 1.850" (47.00mm) | 1.850" (47.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
