ECO-S1EA103BA
  • Share:

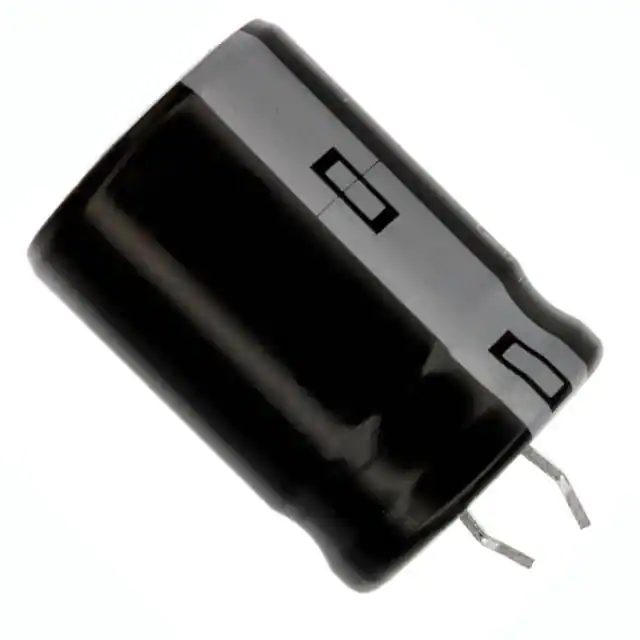

Panasonic Electronic Components ECO-S1EA103BA

Manufacturer No:
ECO-S1EA103BA
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
ECO-S1EA103BA Datasheet
ECAD Model:
-
Description:
CAP ALUM 10000UF 20% 25V SNAP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:10000 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):51mOhm @ 120Hz
Lifetime @ Temp.:3000 Hrs @ 105°C
Operating Temperature:-40°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:3 A @ 120 Hz
Ripple Current @ High Frequency:3.45 A @ 100 kHz
Impedance:-
Lead Spacing:0.394" (10.00mm)
Size / Dimension:0.866" Dia (22.00mm)
Height - Seated (Max):1.654" (42.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can - Snap-In
0 Remaining View Similar

In Stock

-
335

Please send RFQ , we will respond immediately.

Similar Products

Part Number ECO-S1EA103BA ECO-S1EA103DA   ECO-S1EA123BA   ECO-S1EP103BA
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete
Capacitance 10000 µF 10000 µF 12000 µF 10000 µF
Tolerance ±20% ±20% ±20% ±20%
Voltage - Rated 25 V 25 V 25 V 25 V
ESR (Equivalent Series Resistance) 51mOhm @ 120Hz 51mOhm @ 120Hz 44mOhm @ 120Hz 58mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 105°C 3000 Hrs @ 105°C 3000 Hrs @ 105°C 3000 Hrs @ 85°C
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 85°C
Polarization Polar Polar Polar Polar
Ratings - - - -
Applications General Purpose General Purpose General Purpose General Purpose
Ripple Current @ Low Frequency 3 A @ 120 Hz 3 A @ 120 Hz 3.2 A @ 120 Hz 3.78 A @ 120 Hz
Ripple Current @ High Frequency 3.45 A @ 100 kHz 3.45 A @ 100 kHz 3.68 A @ 100 kHz 4.347 A @ 100 kHz
Impedance - - - -
Lead Spacing 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm) 1.181" Dia (30.00mm) 0.866" Dia (22.00mm) 0.866" Dia (22.00mm)
Height - Seated (Max) 1.654" (42.00mm) 1.260" (32.00mm) 1.850" (47.00mm) 1.378" (35.00mm)
Surface Mount Land Size - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole
Package / Case Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In
