Please send RFQ , we will respond immediately.

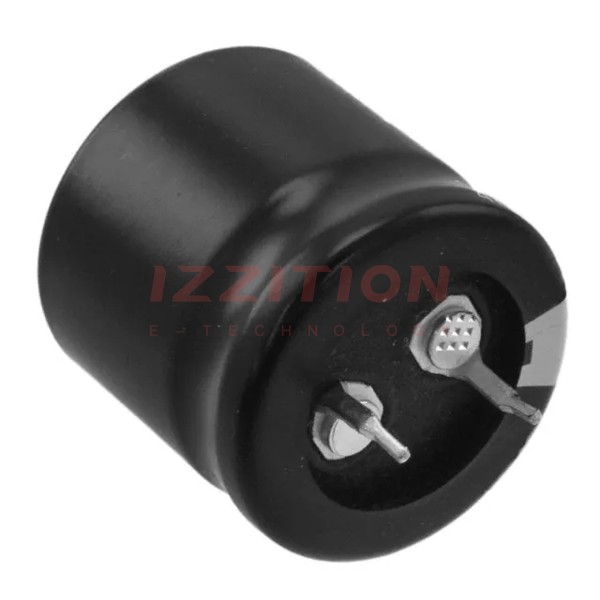

| Part Number | ECO-S1CP103CA | ECO-S1CP123CA | ECO-S1CP153CA | ECO-S1CP183CA | ECO-S1HP103CA | ECO-S1CA103CA | ECO-S1CP103AA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 10000 µF | 12000 µF | 15000 µF | 18000 µF | 10000 µF | 10000 µF | 10000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 16 V | 16 V | 50 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | 75mOhm @ 120Hz | 62mOhm @ 120Hz | 53mOhm @ 120Hz | 46mOhm @ 120Hz | 36mOhm @ 120Hz | 66mOhm @ 120Hz | 66mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 105°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 3.78 A @ 120 Hz | 4.52 A @ 120 Hz | 5.26 A @ 120 Hz | 5.57 A @ 120 Hz | 4.97 A @ 120 Hz | 2.6 A @ 120 Hz | 3.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.347 A @ 100 kHz | 5.198 A @ 100 kHz | 6.049 A @ 100 kHz | 6.406 A @ 100 kHz | 5.716 A @ 100 kHz | 2.99 A @ 100 kHz | 4.347 A @ 100 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.063" (27.00mm) | 1.260" (32.00mm) | 1.260" (32.00mm) | 1.969" (50.00mm) | 1.063" (27.00mm) | 1.457" (37.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
