ECK-TFC101KB
  • Share:

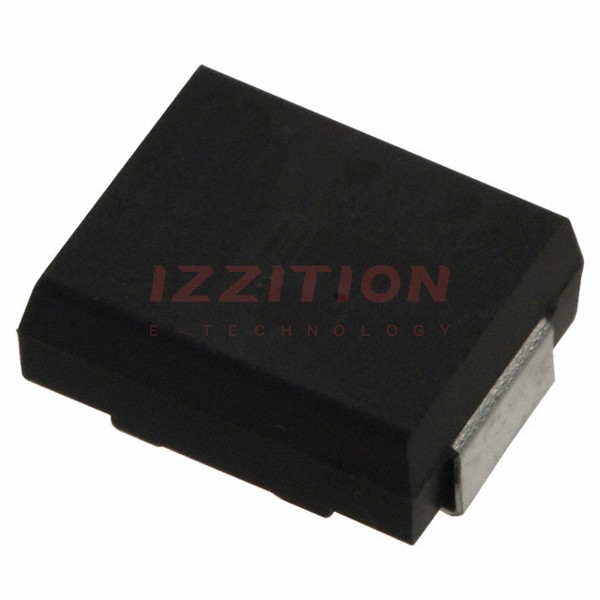

Panasonic Electronic Components ECK-TFC101KB

Manufacturer No:
ECK-TFC101KB
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ECK-TFC101KB Datasheet
ECAD Model:
-
Description:
CAP CER 100PF 250VAC Y5P SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:100 pF
Tolerance:±10%
Voltage - Rated:250V
Temperature Coefficient:Y5P (B)
Operating Temperature:-25°C ~ 100°C
Features:-
Ratings:Y2
Applications:Safety
Failure Rate:-
Mounting Type:Surface Mount, MLCC
Package / Case:Nonstandard SMD
Size / Dimension:0.224" L x 0.177" W (5.70mm x 4.50mm)
Height - Seated (Max):-
Thickness (Max):0.091" (2.30mm)
Lead Spacing:-
Lead Style:-
0 Remaining View Similar

In Stock

-
212

Please send RFQ , we will respond immediately.

Similar Products

Part Number ECK-TFC101KB ECK-TFC151KB   ECK-TFC102KB   ECK-THC101KB
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete
Capacitance 100 pF 150 pF 1000 pF 100 pF
Tolerance ±10% ±10% ±10% ±10%
Voltage - Rated 250V 250V 250V 250V
Temperature Coefficient Y5P (B) Y5P (B) Y5P (B) Y5P (B)
Operating Temperature -25°C ~ 100°C -25°C ~ 100°C -25°C ~ 100°C -25°C ~ 125°C
Features - - - -
Ratings Y2 Y2 Y2 Y1
Applications Safety Safety Safety Safety
Failure Rate - - - -
Mounting Type Surface Mount, MLCC Surface Mount, MLCC Surface Mount, MLCC Surface Mount, MLCC
Package / Case Nonstandard SMD Nonstandard SMD Nonstandard SMD 2-SMD
Size / Dimension 0.224" L x 0.177" W (5.70mm x 4.50mm) 0.224" L x 0.177" W (5.70mm x 4.50mm) 0.224" L x 0.177" W (5.70mm x 4.50mm) 0.268" L x 0.177" W (6.80mm x 4.50mm)
Height - Seated (Max) - - - -
Thickness (Max) 0.091" (2.30mm) 0.091" (2.30mm) 0.091" (2.30mm) 0.098" (2.50mm)
Lead Spacing - - - -
Lead Style - - - Gull Wing
