Please send RFQ , we will respond immediately.

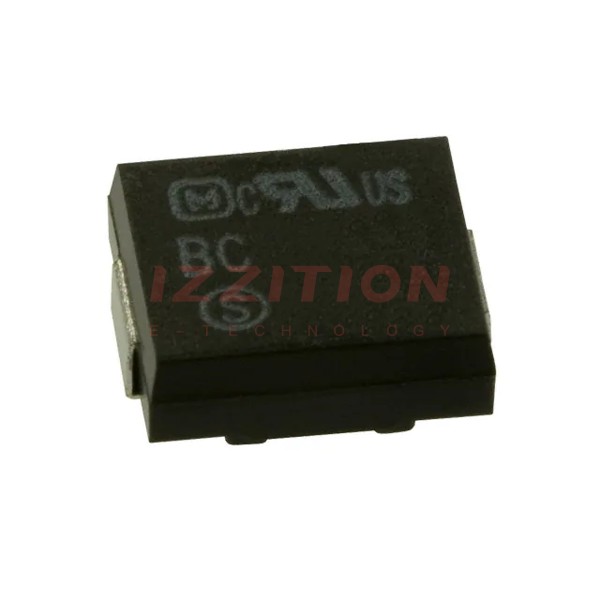

| Part Number | ECK-TBC102ME | ECK-TBC152ME | ECK-TBC102MEM | ECK-TFC102ME |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 pF | 1500 pF | 1000 pF | 1000 pF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 250V | 250V | 250V | 250V |
| Temperature Coefficient | Y5U (E) | Y5U (E) | Y5U (E) | Y5U (E) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 100°C |
| Features | - | - | - | - |
| Ratings | Y2 | Y2 | Y2 | Y2 |
| Applications | Safety | Safety | Safety | Safety |
| Failure Rate | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD |
| Size / Dimension | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.224" L x 0.177" W (5.70mm x 4.50mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.091" (2.30mm) |
| Lead Spacing | - | - | - | - |
| Lead Style | - | - | - | - |
