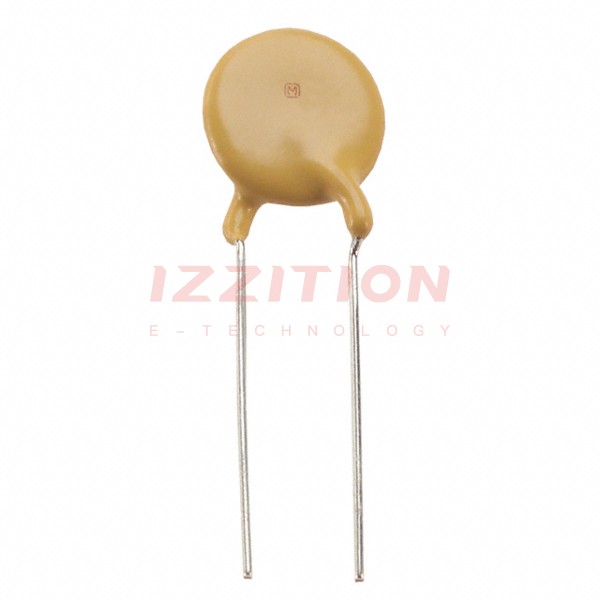

| Part Number | ECK-NTS103MF | ECK-NVS103MF | ECK-ATS103MF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 10000 pF | 10000 pF | 10000 pF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 440VAC | 440VAC | 440VAC |
| Temperature Coefficient | Y5V (F) | Y5V (F) | Y5V (F) |
| Operating Temperature | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C |
| Features | - | - | - |
| Ratings | X1, Y2 | X1, Y2 | X1, Y2 |
| Applications | Safety | Safety | Safety |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.669" Dia (17.00mm) | 0.551" Dia (14.00mm) | 0.669" Dia (17.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) | 0.709" (18.00mm) | 0.827" (21.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.394" (10.00mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads |
