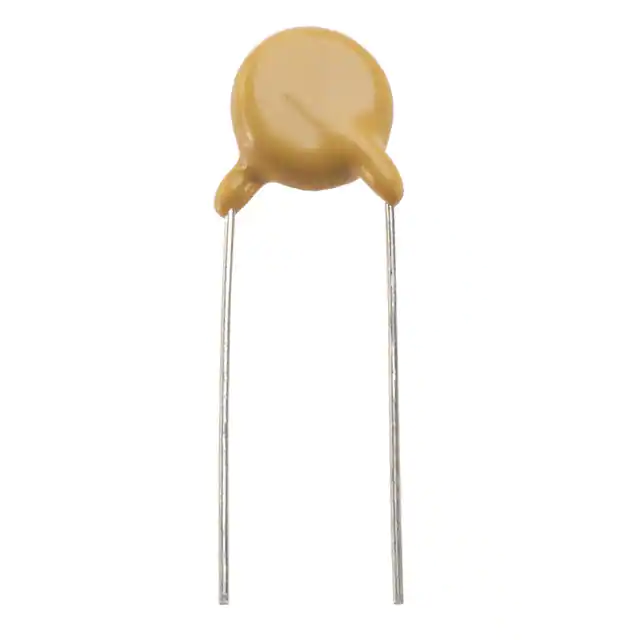

| Part Number | ECK-DNA102MB | ECK-ANA102MB | ECK-DNA101MB |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 pF | 1000 pF | 100 pF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 250V | 440VAC | 250V |
| Temperature Coefficient | Y5P (B) | Y5P (B) | Y5P (B) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 125°C | -25°C ~ 85°C |
| Features | - | - | - |
| Ratings | X1, Y1 | X1, Y1 | X1, Y1 |
| Applications | Safety | Safety | Safety |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.433" Dia (11.00mm) | 0.394" Dia (10.00mm) | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.591" (15.00mm) | 0.551" (14.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Lead Style | Straight | Formed Leads | Straight |
