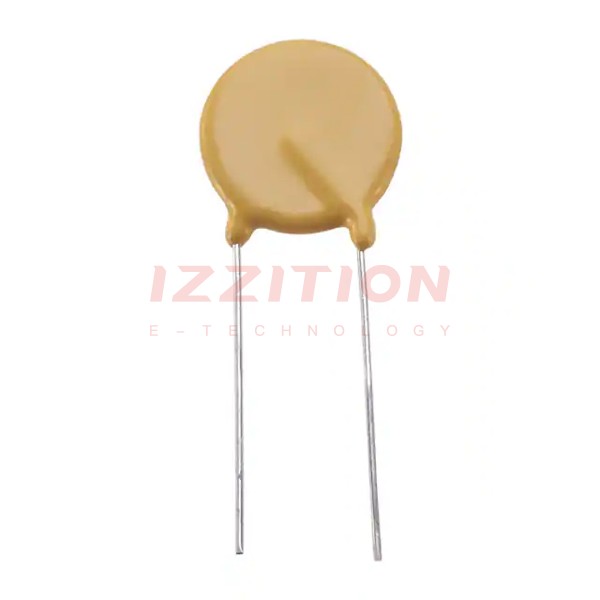

| Part Number | ECK-D3A562KBP | ECK-D3D562KBP | ECK-A3A562KBP | ECK-D3A561KBP |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 5600 pF | 5600 pF | 5600 pF | 560 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 1000V (1kV) | 2000V (2kV) | 1000V (1kV) | 1000V (1kV) |
| Temperature Coefficient | Y5P (B) | Y5P (B) | Y5P (B) | Y5P (B) |
| Operating Temperature | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C |
| Features | High Voltage | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.669" Dia (17.00mm) | 0.984" Dia (25.00mm) | 0.669" Dia (17.00mm) | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) | 1.142" (29.00mm) | 0.827" (21.00mm) | 0.433" (11.00mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) |
| Lead Style | Straight | Straight | Formed Leads | Straight |
